2018 Chevrolet Trax Standard Equipment

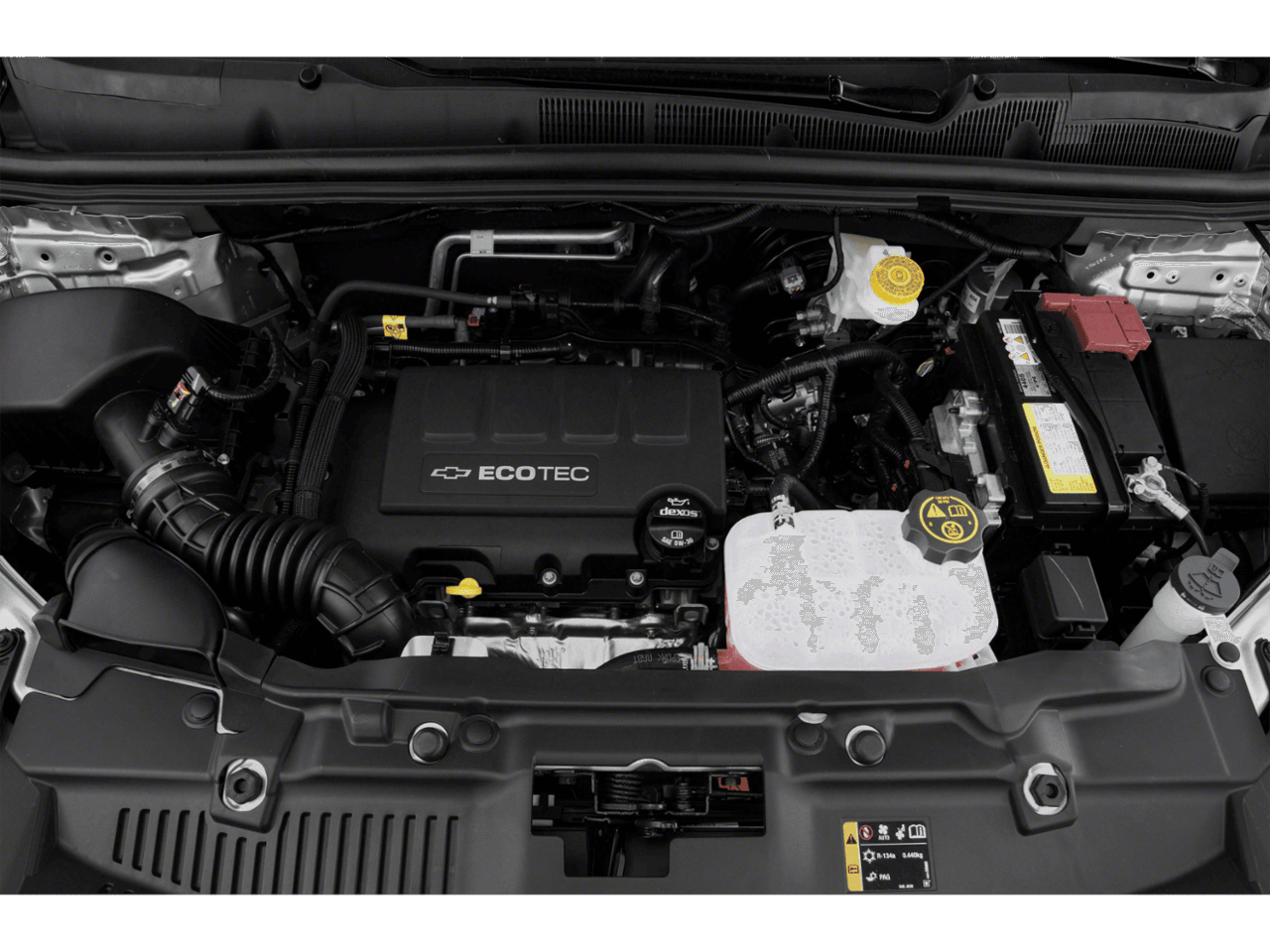

  • Engine, ECOTEC Turbo 1.4L Variable Valve Timing DOHC 4-cylinder sequential MFI (138 hp [102.9 kW] @ 4900 rpm, 148 lb-ft of torque [199.8 N-m] @ 1850 rpm)
  • Transmission, 6-speed automatic
  • Axle, 3.53 final drive ratio
  • Chassis, front-wheel drive
  • Battery, 60AH
  • Alternator, 130 amps
  • Suspension, Ride and Handling
  • Steering, power, non-variable ratio, electric
  • Brakes, 4-wheel antilock, front disc/rear drum
  • Mechanical jack with tools

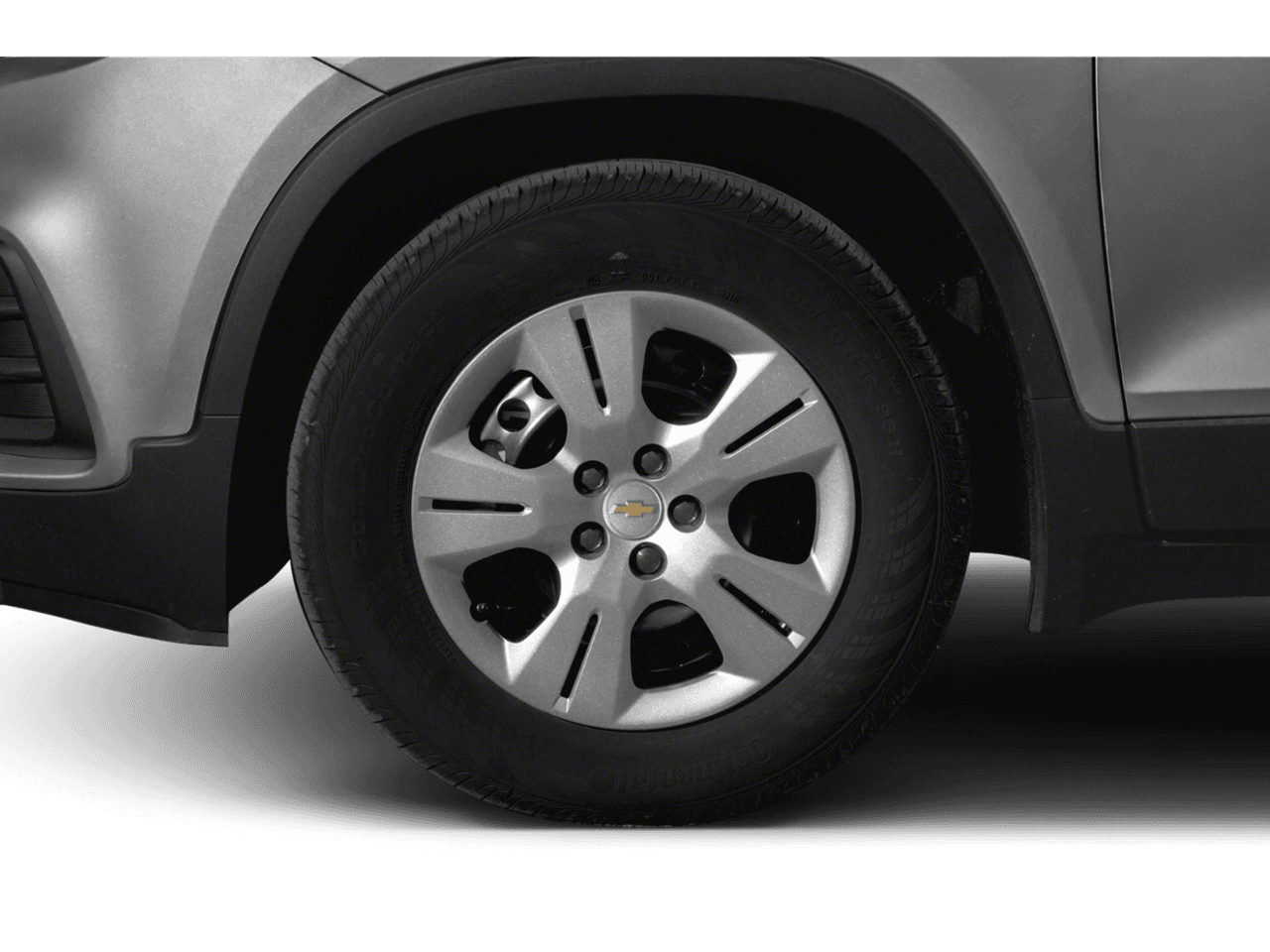

  • Wheels, 16″ (40.6 cm) steel
  • Tires, P205/70R16 all-season, blackwall
  • Wheel, spare, 16″ (40.6 cm) steel
  • Tire, compact spare
  • Moldings, beltline side glass (Black.)
  • Headlamps, halogen reflector with automatic exterior lamp control
  • Tail lamps, sculpted
  • Mirrors, outside power-adjustable, body-color, manual-folding with Black base
  • Windshield, solar absorbing
  • Windshield, acoustic laminated
  • Glass, solar absorbing
  • Wipers, front intermittent
  • Wiper, rear intermittent
  • Door handles, body-color

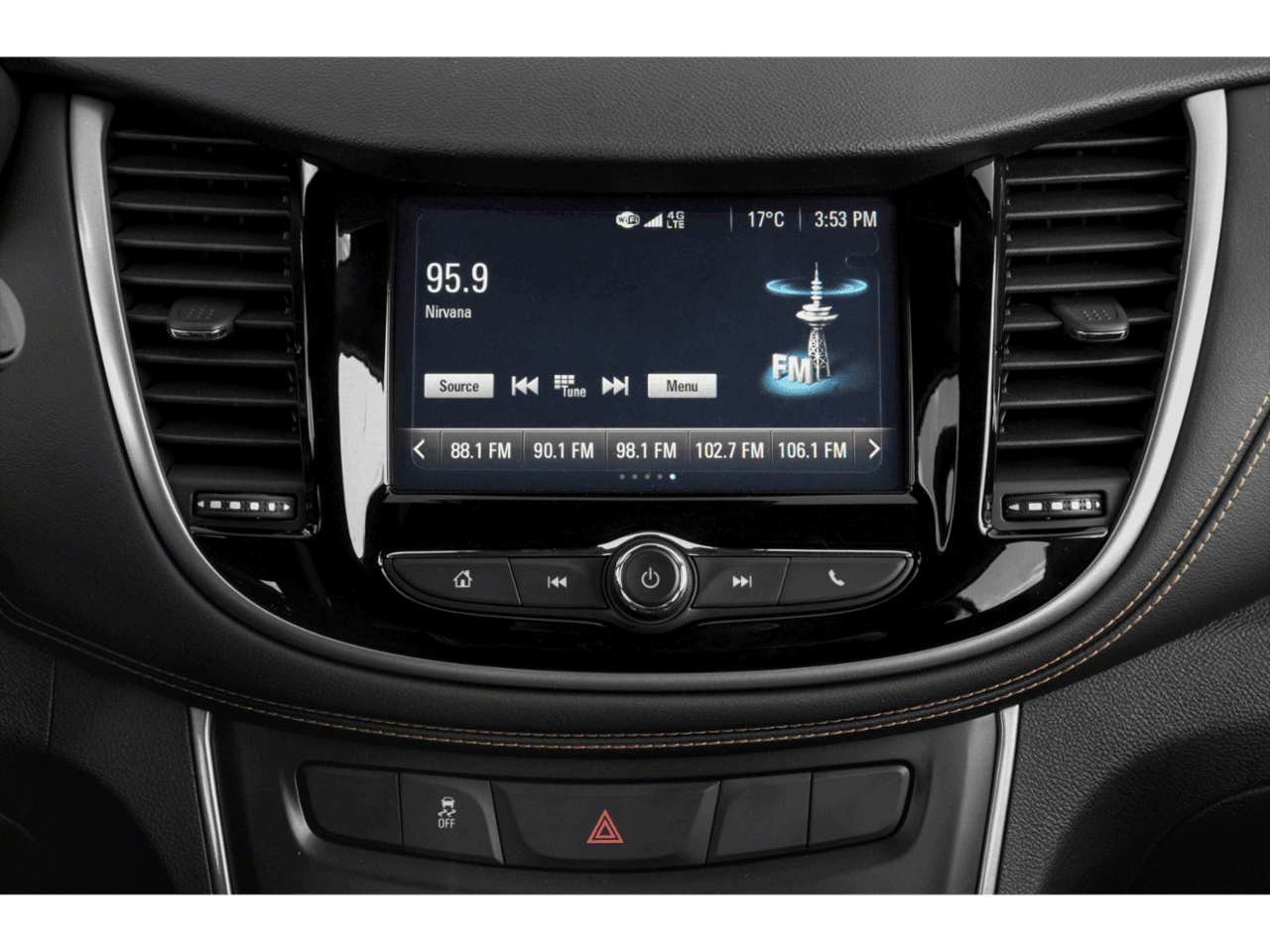

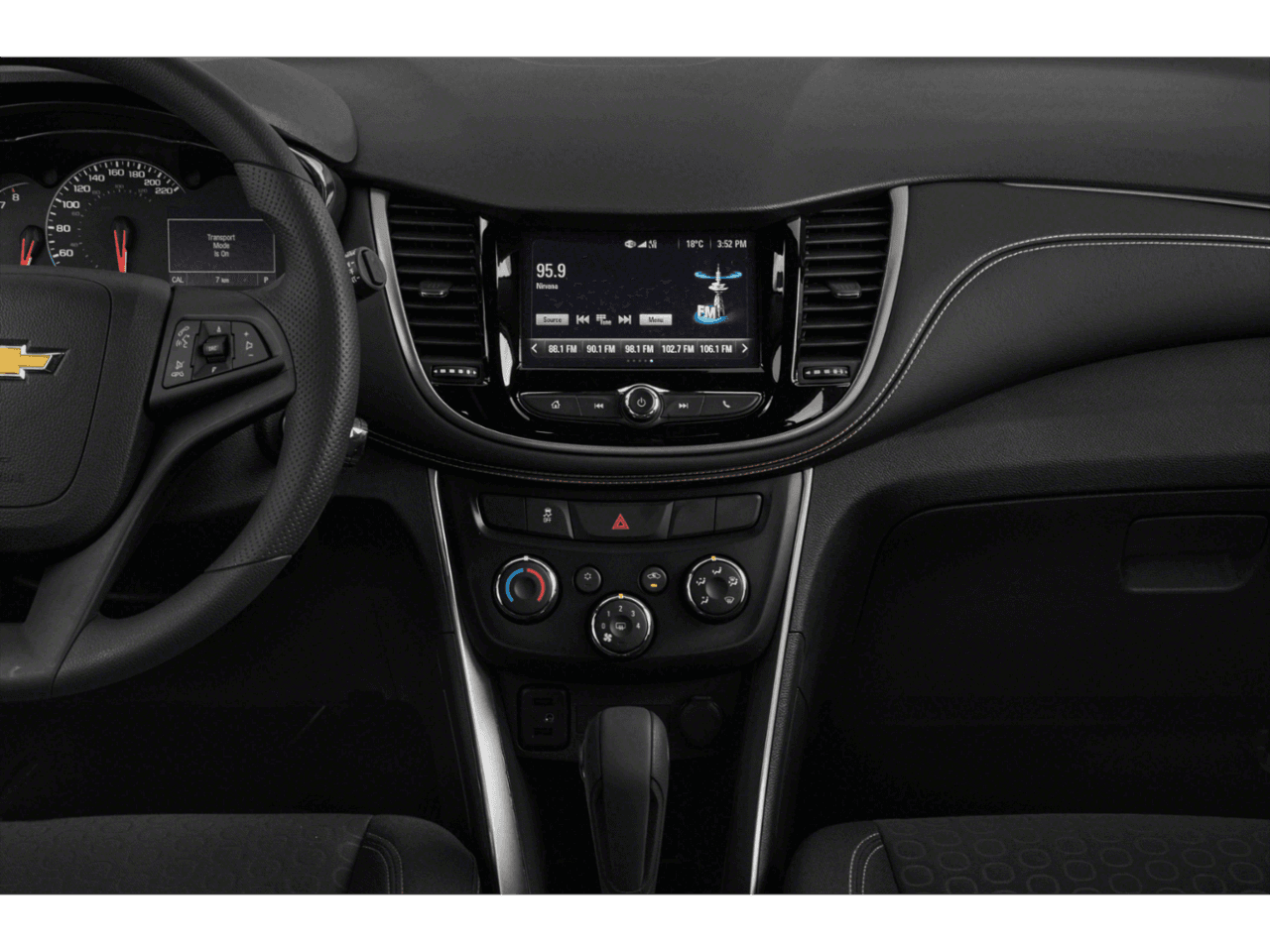

  • Audio system, Chevrolet MyLink Radio with 7″ diagonal color touch-screen, AM/FM stereo voice pass-through technology, includes Bluetooth streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone
  • Audio system feature, 6-speaker system
  • Audio system feature, USB ports (2) with auxiliary input jack
  • Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first); EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)

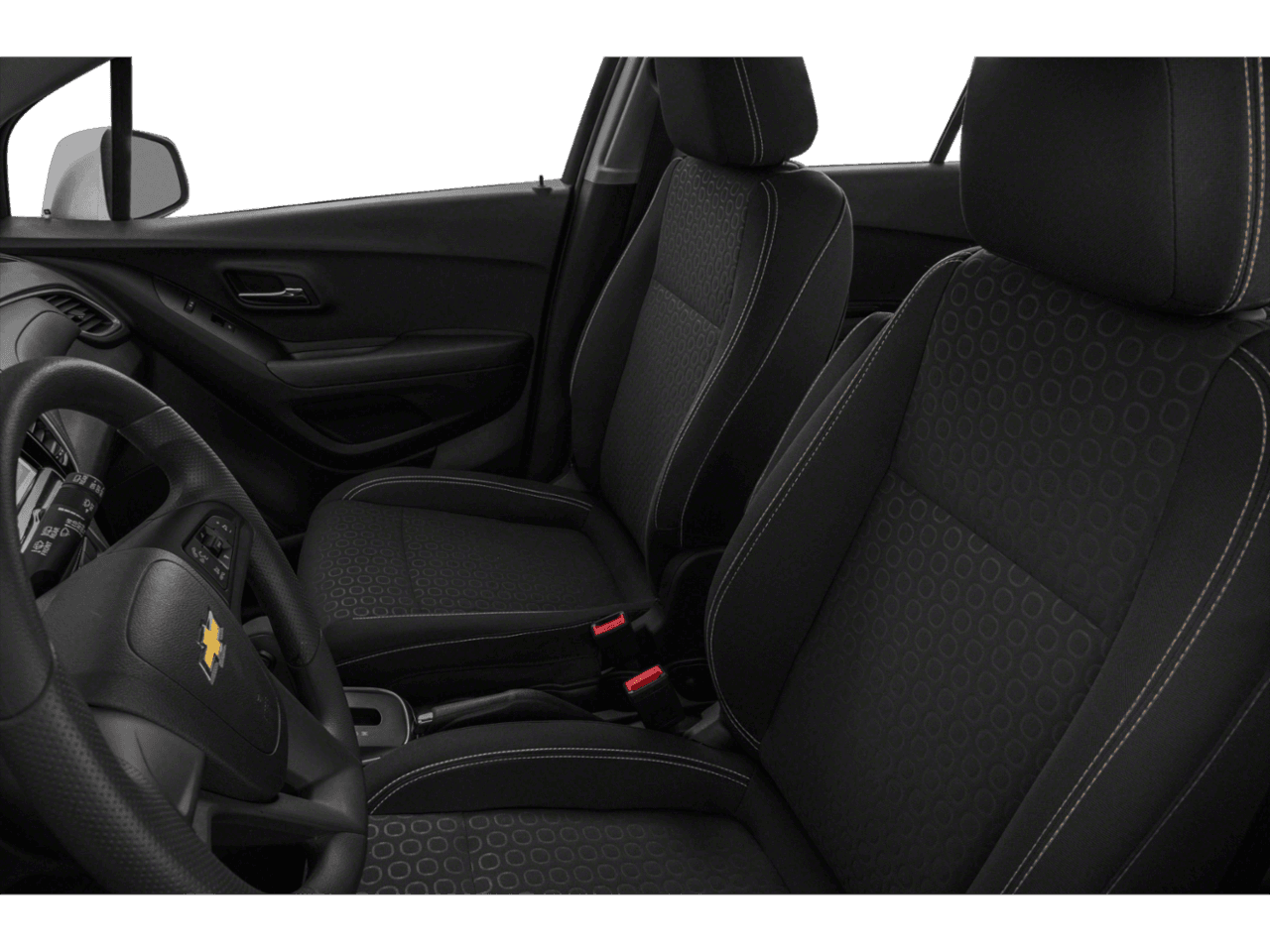

  • Seats, front bucket with driver power lumbar
  • Seat trim, cloth
  • Seat adjuster, driver 4-way manual
  • Seat adjuster, front passenger 2-way manual
  • Seatback, front passenger flat-folding
  • Map pocket, driver seatback
  • Head restraints, 2-way adjustable (up/down), front
  • Armrest, driver seat

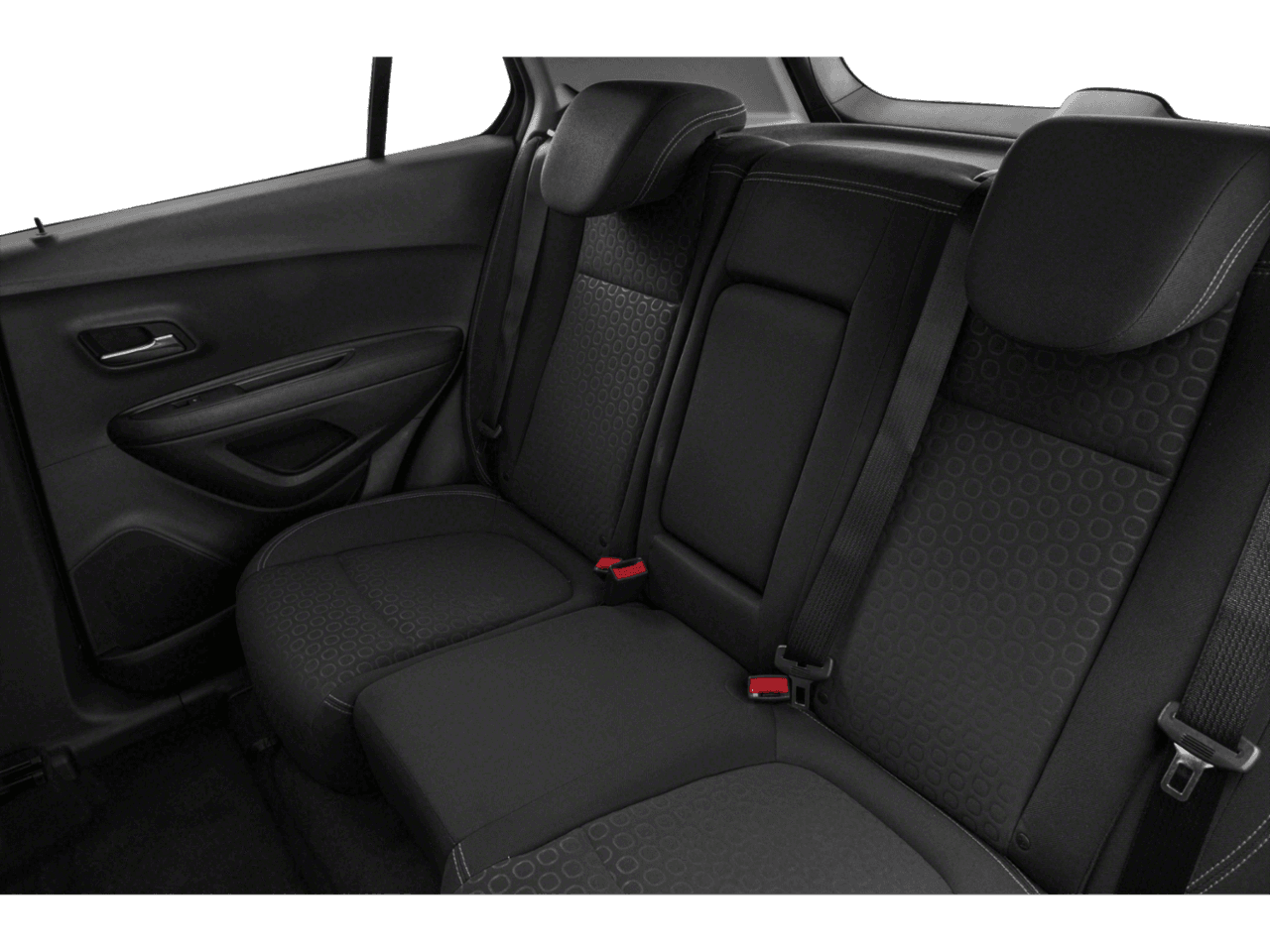

  • Seat, rear 60/40 split-bench, folding
  • Floor mats, color-keyed and carpeted front and rear
  • Steering column, manual tilt and telescoping

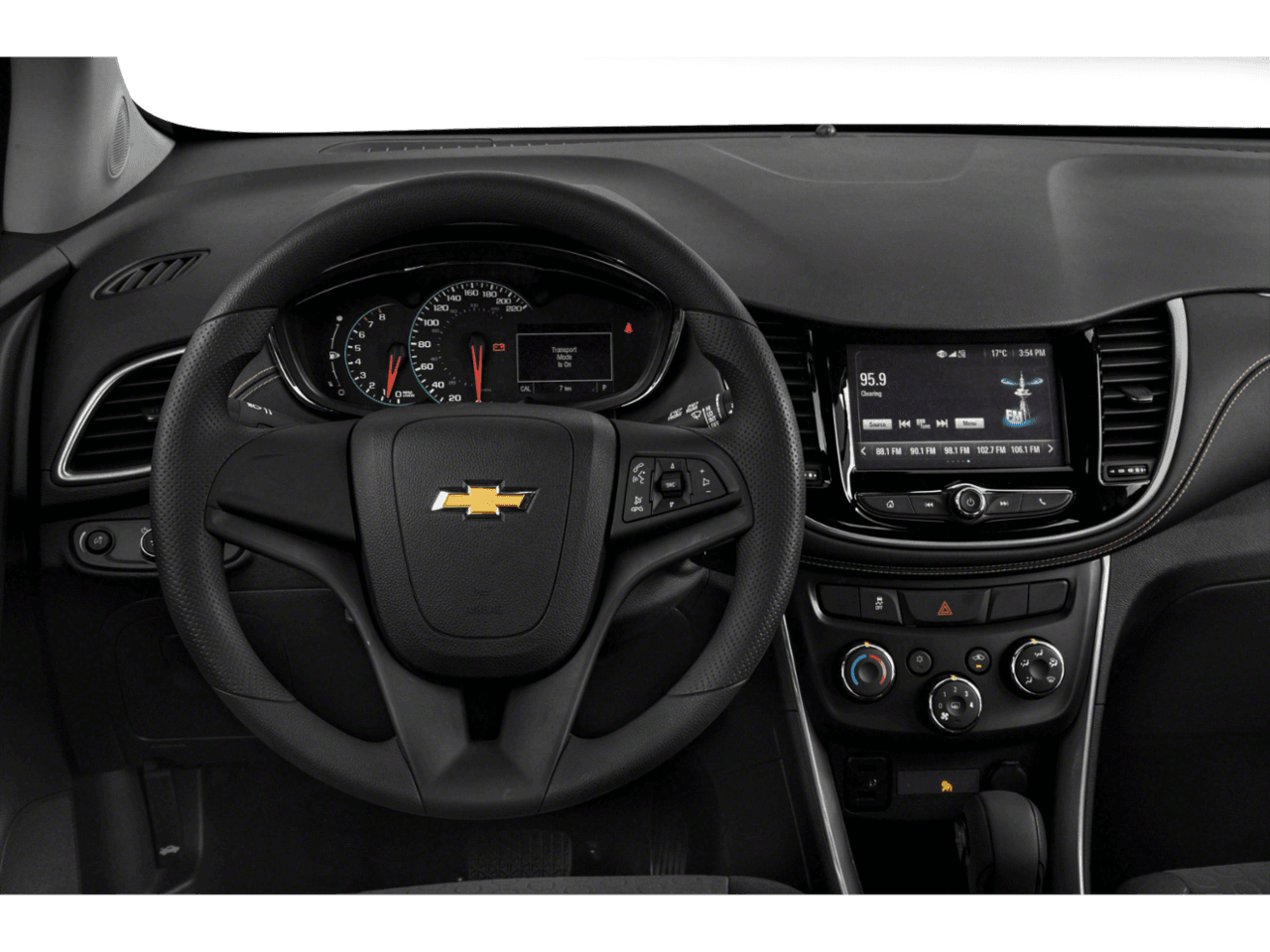

  • Steering wheel, 3-spoke, urethane
  • Steering wheel controls, mounted audio and phone interface controls

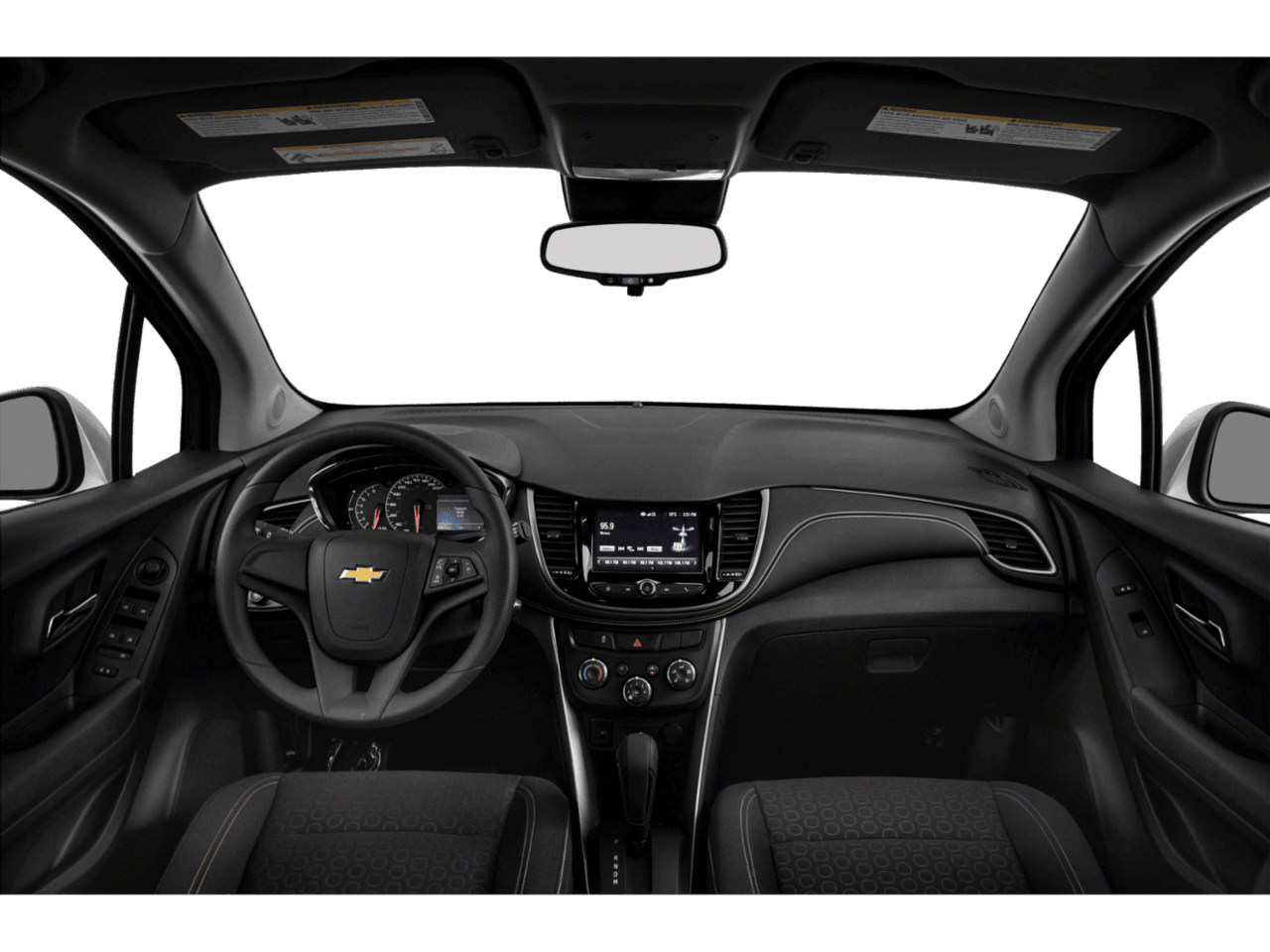

  • Instrumentation with analog speedometer and tachometer
  • Driver Information Center 3.5″ monochrome display with True White back lighting and digital readouts, including speedometer, odometer, trip odometer and fuel gauge
  • Speedometer, miles/kilometers
  • Compass display located in the Driver Information Center
  • Door locks, power programmable
  • Remote Keyless Entry with panic alarm
  • Keys, (2) foldable
  • Windows, power with driver Express-Up/Down and front passenger and rear Express-Down
  • Theft-deterrent system, unauthorized entry
  • Air conditioning, single-zone manual
  • Air filter, particle
  • Heater duct, rear, floor
  • Defogger, rear-window, electric

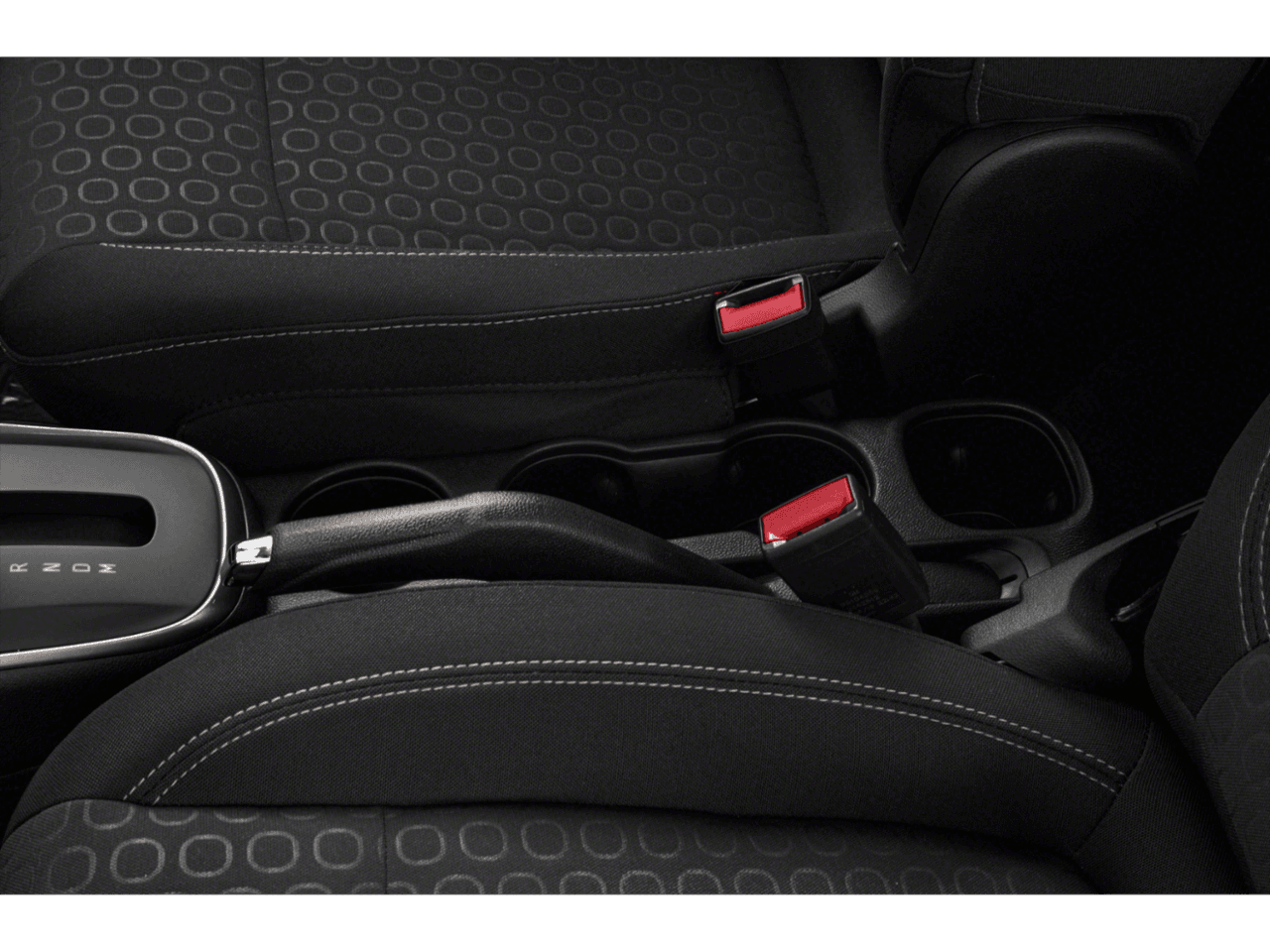

  • Cup holders, 4 front in console and 2 rear in center armrest
  • Power outlet, auxiliary, 12-volt
  • Mirror, inside rearview manual day/night
  • Visors, driver and front passenger vanity mirrors, covered
  • Assist handles, driver, front passenger and rear outboard includes coat hooks on rear handles
  • Lighting, interior with front reading lights
  • Shift knob, satin silver and chrome

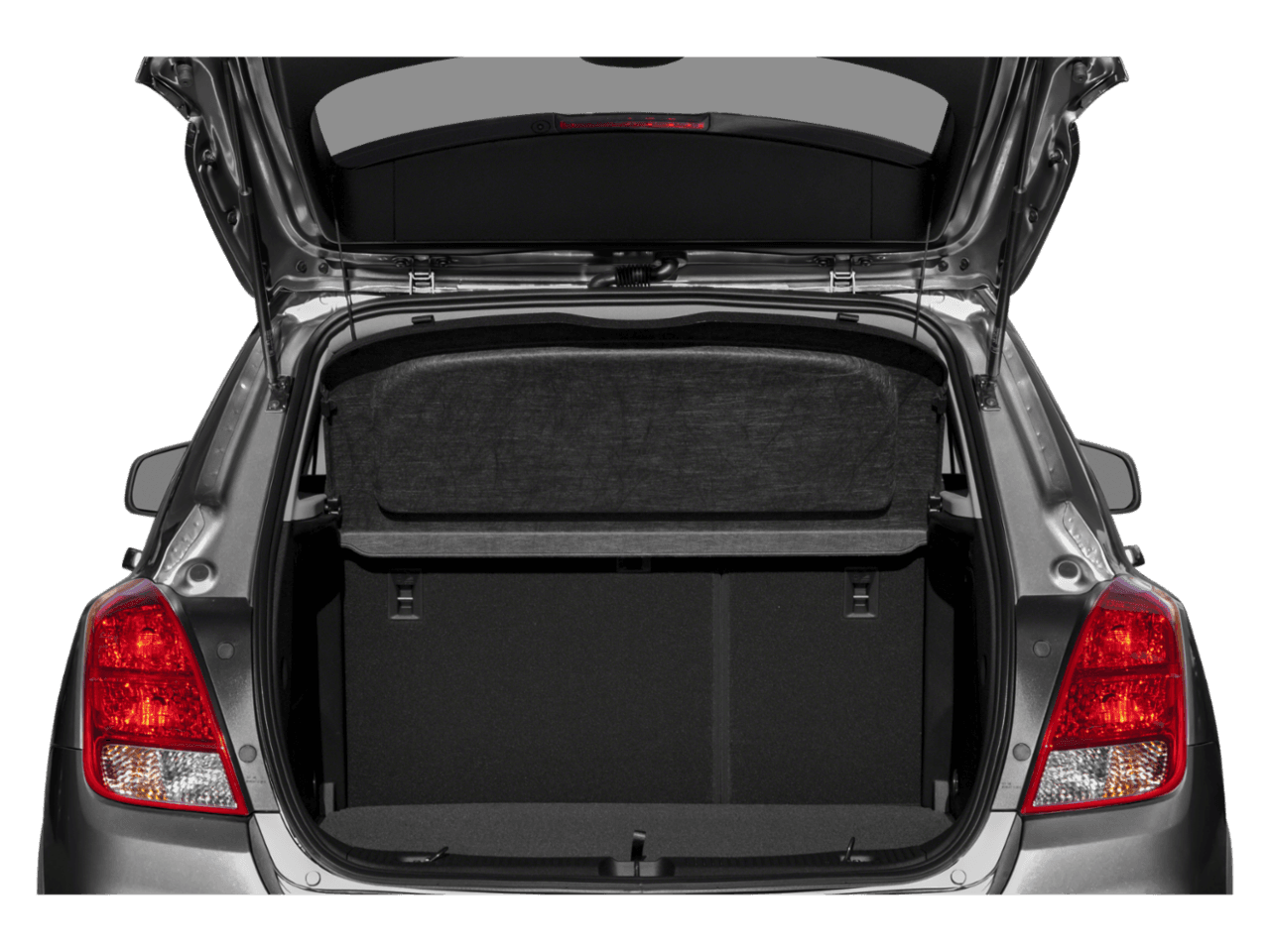

  • Cargo security cover, rigid, removable
  • Cargo storage, tray under rear floor
  • Cargo tie downs, 4
  • Lighting, cargo area
  • StabiliTrak, stability control system includes Traction Control
  • Tire Pressure Monitor System
  • Daytime Running Lamps, reduced intensity low beam
  • Air bags, 10 total frontal and knee for driver and front passenger, side-impact seat-mounted and roof rail for front and rear outboard seating positions, includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner’s Manual for more information.)
  • Passenger Sensing System sensor indicator inflatable restraint, front passenger/child/presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner’s Manual for more information.)
  • OnStar and Chevrolet connected services capable; EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
  • Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more EFFECTIVE WITH SALES STARTING 5/1/2018 (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
  • Rear Vision Camera
  • Safety belts, 3-point rear outboard and center position lap belt
  • Safety belt pretensioners, driver and front passenger, dual
  • LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
  • Door locks, rear child security
  • Knee protector, driver and front passenger, bolster
2018 Chevrolet Trax Available Options
  • EMISSIONS, FEDERAL REQUIREMENTS (FE9)
  • EMISSIONS, CALIFORNIA STATE REQUIREMENTS (YF5)
  • EMISSIONS, CONNECTICUT, DELAWARE, MAINE, MARYLAND, MASSACHUSETTS, NEW JERSEY, NEW YORK, OREGON, PENNSYLVANIA, RHODE ISLAND, VERMONT AND WASHINGTON STATE REQUIREMENTS (NE1)
  • EMISSIONS OVERRIDE, CALIFORNIA (NB8)
  • EMISSIONS OVERRIDE, STATE-SPECIFIC (for dealers ordering vehicles in (YF5) or (NE1) emission states – California, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington) (NB9)
  • EMISSIONS OVERRIDE, FEDERAL (for vehicles ordered by dealers in Federal emission states with (YF5) or (NE1) emissions – Not required for vehicles being shipped to California, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont or Washington) (NC7)
  • ENGINE, ECOTEC TURBO 1.4L VARIABLE VALVE TIMING DOHC 4-CYLINDER SEQUENTIAL MFI (138 hp [102.9 kW] @ 4900 rpm, 148 lb-ft of torque [199.8 N-m] @ 1850 rpm) (LUV) – Standard
  • TRANSMISSION, 6-SPEED AUTOMATIC (MNK) – Standard
  • AXLE, 3.53 FINAL DRIVE RATIO (FXH)
  • LS PREFERRED EQUIPMENT GROUP Includes Standard Equipment (1LS)
  • STORM BLUE METALLIC (G35)
  • SANDY RIDGE METALLIC (G8K)
  • SILVER ICE METALLIC (GAN)
  • SUMMIT WHITE (GAZ)
  • MOSAIC BLACK METALLIC (GB0)
  • MOSAIC BLACK METALLIC (GB8)
  • STANDARD PAINT (undefined)
  • SEATS, FRONT BUCKET WITH DRIVER POWER LUMBAR (AR9) – Standard
  • JET BLACK, CLOTH SEAT TRIM (AFJ)
  • JET BLACK/LIGHT ASH GRAY, CLOTH SEAT TRIM (AFK)
  • AUDIO SYSTEM, CHEVROLET MYLINK RADIO with 7″ diagonal color touch-screen, AM/FM stereo voice pass-through technology, includes Bluetooth streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone (IOR) – Standard
  • LPO, CARGO PACKAGE includes (VLI) Cargo mat, LPO and (W2D) Cargo net, LPO (PDD)
  • LPO, PROTECTION PACKAGE includes (VAV) All-weather front and rear floor mats, LPO and (VQK) Front and rear custom molded Black splash guards, LPO (PDC)
  • LPO, INTERIOR PROTECTION PACKAGE includes (VAV) All-weather floor mats, LPO and (VLI) All-weather cargo mat, LPO (PDH)
  • FLEET CONVENIENCE PACKAGE includes (K34) cruise control, (AG9) 6-way power driver seat adjuster and (AKO) rear window and liftgate deep-tinted glass (PCI)
  • HEATER, OIL PAN (KPK)
  • LPO, ACCESSORY CARRIER MOUNT includes 1-1/4″ receiver for attaching bike/ski carriers (SDD)
  • LPO, FRONT AND REAR SPLASH GUARDS, CUSTOM BLACK MOLDED (VQK)
  • GLASS, DEEP-TINTED, REAR WINDOWS AND LIFTGATE (AKO)
  • LICENSE PLATE BRACKET, FRONT (VK3)
  • SEAT ADJUSTER, DRIVER 6-WAY POWER (AG9)
  • LPO, ALL-WEATHER FLOOR MATS, FRONT AND REAR (VAV)
  • LPO, ALL-WEATHER FLOOR LINERS, FRONT AND REAR, BLACK (S55)
  • CRUISE CONTROL, ELECTRONIC, AUTOMATIC (K34)
  • LPO, CARGO AREA ORGANIZER, COLLAPSIBLE (RWU)
  • LPO, CARGO MAT (VLI)
  • LPO, CARGO NET (W2D)
  • LPO, CARGO TRAY (CAV)
  • GM COMMERCIAL LINK – 1 YEAR OF SERVICE includes 12 months of GM Commercial Link service. Provides access and reporting for key vehicle information such as speed, location and maintenance through website and mobile application. Eligible customers must sign up for an account at www.gmcommerciallink.com in order take advantage of this 12 month offer. The Commercial Link service is included in the price of the vehicle. Total service duration is 12 months. Non-Transferrable. Non-Refundable (P0G)
  • GM COMMERCIAL LINK – 2 YEARS OF SERVICE includes 24 months of GM Commercial Link service. Provides access and reporting for key vehicle information such as speed, location and maintenance through website and mobile application. Eligible customers must sign up for an account at www.gmcommerciallink.com in order take advantage of this 24 month offer. The Commercial Link service is included in the price of the vehicle. Total service duration is 24 months. Non-Transferrable. Non-Refundable (P0H)
  • GM COMMERCIAL LINK – 3 YEARS OF SERVICE includes 36 months of GM Commercial Link service. Provides access and reporting for key vehicle information such as speed, location and maintenance through website and mobile application. Eligible customers must sign up for an account at www.gmcommerciallink.com in order take advantage of this 36 month offer. The Commercial Link service is included in the price of the vehicle. Total service duration is 36 months. Non-Transferrable. Non-Refundable (P0I)
  • ONSTAR 6 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 6 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 12 months (18 months for Cadillac). (PQF)
  • ONSTAR 18 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 18 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 24 months (30 months for Cadillac). (PQG)
  • ONSTAR 30 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 30 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 36 months (42 months for Cadillac). (PQH)
  • ONSTAR 42 MONTHS OF ONSTAR PROTECTION SERVICE. Provides 42 months of Protection service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 48 months (54 months for Cadillac). (PRD)
  • ONSTAR 6 MONTHS OF ONSTAR SECURITY SERVICE. Provides 6 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 12 months (18 months for Cadillac). (PQI)
  • ONSTAR 18 MONTHS OF ONSTAR SECURITY SERVICE. Provides 18 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 24 months (30 months for Cadillac). (PQL)
  • ONSTAR 30 MONTHS OF ONSTAR SECURITY SERVICE. Provides 30 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 36 months (42 months for Cadillac). (PQM)
  • ONSTAR 42 MONTHS OF ONSTAR SECURITY SERVICE. Provides 42 months of Security service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial excludes Hands-Free Calling minutes). Total service duration is 48 months (54 months for Cadillac). (PRE)
  • ONSTAR ADDITIONAL 6 MONTHS OF ONSTAR FLEET GUIDANCE TRIAL SERVICE. Provides 6 months of Fleet Guidance service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial and plan excludes Hands-Free Calling minutes). Total service duration is 12 months (18 months for Cadillac). (PQP)
  • ONSTAR ADDITIONAL 18 MONTHS OF ONSTAR FLEET GUIDANCE TRIAL SERVICE. Provides 18 months of Fleet Guidance service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial and plan excludes Hands-Free Calling minutes). Total service duration is 24 months (30 months for Cadillac). (PQQ)
  • ONSTAR ADDITIONAL 30 MONTHS OF ONSTAR FLEET GUIDANCE TRIAL SERVICE. Provides 30 months of Fleet Guidance service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial and plan excludes Hands-Free Calling minutes). Total service duration is 36 months (42 months for Cadillac). (PQT)
  • ONSTAR ADDITIONAL 42 MONTHS OF ONSTAR FLEET GUIDANCE SERVICE. Provides 42 months of Guidance service in addition to the 6 months of standard Guidance plan trial service (12 months for Cadillac) that is included in the price of the vehicle (trial and plan excludes Hands-Free Calling minutes). Total service duration is 48 months (54 months for Cadillac). (PRF)
  • ONSTAR WITH 4G LTE FOR FLEET (20GB/12 MONTHS) provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes AT&T 20GB data plan good for 12 months. (ROV)
  • ONSTAR WITH 4G LTE FOR FLEET (36GB/24 MONTHS) provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes AT&T 36GB data plan good for 24 months. (ROW)
  • FLEET FREE MAINTENANCE CREDIT. This option code provides a credit in lieu of the free oil changes, tire rotations and inspections (4 maximum), during the first 24 months and 24,000 miles period for this ordered vehicle. The invoice will detail the applicable credit. The customer will be responsible for all oil change, tire rotations and inspections costs for this vehicle. (R9Y)
  • SHIP THRU, PRODUCED IN SAN LUIS POTOSI (SLP) MEXICO ASSEMBLY AND SHIPPED TO AUTO TRUCK GROUP, ROANOKE, IN. (TDL)
  • SHIP THRU, PRODUCED IN SAN LUIS POTOSI (SLP) MEXICO ASSEMBLY AND SHIPPED TO KERR INDUSTRIES, ARLINGTON, TX (SVV)
  • SHIP THRU, PRODUCED IN SAN LUIS POTOSI (SLP) MEXICO ASSEMBLY AND SHIPPED TO GENERAL TRUCK BODY, ARLINGTON, TX, RETURN TO ARLINGTON ASSEMBLY (TMA)
2018 Chevrolet Trax Consumer Information
  • Basic Years – 3
  • Basic Miles/km – 36,000
  • Drivetrain Years – 5
  • Drivetrain Miles/km – 60,000
  • Drivetrain Note – Qualified Fleet Purchases: 5 Years/100,000 Miles
  • Corrosion Years – 3
  • Corrosion Years – 6 (Rust-Through)
  • Corrosion Miles/km – 100,000 (Rust-Through)
  • Corrosion Miles/km – 36,000
  • Roadside Assistance Years – 5
  • Roadside Assistance Miles/km – 60,000
  • Roadside Assistance Note – Qualified Fleet Purchases: 5 Years/100,000 Miles
  • Maintenance Years – 2
  • Maintenance Miles/km – 24,000
  • Maintenance Note – 2 Visits
  • Overall Rating – * * * * *
  • Overall Frontal Barrier Crash Rating – * * * * *
  • Frontal Barrier Crash Rating Driver – * * * * *
  • Frontal Barrier Crash Rating Passenger – * * * * *
  • Overall Side Crash Rating – * * * * *
  • Side Barrier Rating – * * * * *
  • Side Barrier Rating Driver – * * * * *
  • Side Barrier Rating Passenger Rear Seat – * * * * *
  • Side Pole Rating Driver Front Seat – * * * * *
  • Male/Female Dummy Note – Male: Average sized adult male dummy in 35-MPH crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs. Female: Small-sized adult female dummy in 35-mph crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs.
  • Combined Side Rating Front Seat – * * * * *
  • Combined Side Rating Rear Seat – * * * * *
  • Rollover Rating – * * * *
  • Rollover Rating Dynamic Test Result – No Tip
  • Risk of Rollover – 19.80%
  • Rollover Note – Dynamic (moving) test results (Tip or No Tip) and measured rollover-related properties determine vehicle’s risk of rollover in single vehicle crash and its rollover rating. The Rollover Resistance Rating utilizes a “fishhook” maneuver which is a series of abrupt turns at varying speeds to see how “top-heavy” a vehicle is.
2018 Chevrolet Trax Technical Specifications
  • Vehicle Name – Chevrolet Trax
  • Body Style – Sport Utility Vehicle
  • Drivetrain – Front Wheel Drive
  • Trans Order Code – MNK
  • Trans Type – 6
  • Trans Description Cont. – Automatic
  • Trans Description Cont. Again –
  • First Gear Ratio (:1) – 4.58
  • Second Gear Ratio (:1) – 2.96
  • Third Gear Ratio (:1) – 1.91
  • Fourth Gear Ratio (:1) – 1.45
  • Fifth Gear Ratio (:1) – 1.00
  • Sixth Gear Ratio (:1) – 0.75
  • Reverse Ratio (:1) – 2.94
  • Clutch Size –
  • Final Drive Axle Ratio (:1) – 3.53
  • Transfer Case Gear Ratio (:1), High –
  • Transfer Case Gear Ratio (:1), Low –
  • EPA Classification – Special Purpose
  • Model Group – Trax undefined
  • Vehicle Segment – Subcompact Sport Utility undefined
  • Vehicle Type – Sport Utility undefined
  • Passenger Capacity – 5
  • Passenger Volume – – TBD – ftĀ³
  • Front Head Room – 39.60 in
  • Front Leg Room – 40.80 in
  • Front Shoulder Room – 54.10 in
  • Front Hip Room – 51.70 in
  • Second Head Room – 38.80 in
  • Second Leg Room – 35.70 in
  • Second Shoulder Room – 52.80 in
  • Second Hip Room – 50.70 in
  • Base Curb Weight – 2805 lbs
  • EPA Greenhouse Gas Score – 6
  • Tons/yr of CO2 Emissions @ 15K mi/year – 6.3
  • Fuel Economy Est-Combined – 28 MPG
  • EPA Fuel Economy Est – City – 25 MPG
  • EPA Fuel Economy Est – Hwy – 33 MPG
  • Dead Weight Hitch – Max Trailer Wt. – – TBD – lbs
  • Dead Weight Hitch – Max Tongue Wt. – – TBD – lbs
  • Wt Distributing Hitch – Max Trailer Wt. – – TBD – lbs
  • Wt Distributing Hitch – Max Tongue Wt. – – TBD – lbs
  • Engine Order Code – LUV
  • Engine Type – Turbocharged Gas 4-Cyl
  • Displacement – 1.4L/83
  • Fuel System – Electronic Fuel Injection
  • SAE Net Horsepower @ RPM – 138 @ 4900
  • SAE Net Torque @ RPM – 148 @ 1850
  • Engine Displacement Units – 1.4 undefined, 1.4 undefined (LUV)
  • Engine Camshaft – DOHC undefined, DOHC undefined (LUV)
  • Engine Block Type – iron undefined, iron undefined (LUV)
  • Engine Cylinder Count – 4 undefined, 4 undefined (LUV)
  • Engine Valve Count – 4 undefined, 4 undefined (LUV)
  • Cold Cranking Amps @ 0Ā° F (Primary) – – TBD –
  • Maximum Alternator Capacity (amps) – 130
  • Total Cooling System Capacity – 6.9 qts
  • Suspension Type – Front – MacPherson Strut
  • Suspension Type – Rear – Torsion Beam
  • Suspension Type – Front (Cont.) –
  • Suspension Type – Rear (Cont.) –
  • Shock Absorber Diameter – Front – – TBD – mm
  • Shock Absorber Diameter – Rear – – TBD – mm
  • Stabilizer Bar Diameter – Front – – TBD – in
  • Stabilizer Bar Diameter – Rear – – TBD – in
  • Front Tire Order Code – RAK (RAK), RAJ
  • Rear Tire Order Code – RAK (RAK), RAJ
  • Spare Tire Order Code – – TBD –
  • Front Tire Size – P215/55R18 (RAK), P205/70R16
  • Rear Tire Size – P215/55R18 (RAK), P205/70R16
  • Spare Tire Size – Compact
  • Front Wheel Size – 18 x – TBD – in (REN,RNO), 16 x – TBD – in
  • Rear Wheel Size – 18 x – TBD – in (REN,RNO), 16 x – TBD – in
  • Spare Wheel Size – 16 x – TBD – in
  • Front Wheel Material – Aluminum (REN,RNO), Steel
  • Rear Wheel Material – Aluminum (REN,RNO), Steel
  • Spare Wheel Material – Steel
  • Steering Type – Pwr
  • Steering Ratio (:1), Overall – 16.1
  • Lock to Lock Turns (Steering) – 2.7
  • Turning Diameter – Curb to Curb – 36.7 ft
  • Turning Diameter – Wall to Wall – – TBD – ft
  • Brake Type – Pwr
  • Brake ABS System – 4-Wheel
  • Disc – Front (Yes or ) – No
  • Disc – Rear (Yes or ) –
  • Front Brake Rotor Diam x Thickness – 11.8 x 1.0 in
  • Rear Brake Rotor Diam x Thickness –
  • Drum – Rear (Yes or ) – Yes
  • Rear Drum Diam x Width – 9.0 x – TBD – in
  • Fuel Tank Capacity, Approx – 14 gal
  • Wheelbase – 100.6 in
  • Length, Overall – 167.20 in
  • Width, Max w/o mirrors – 69.90 in
  • Height, Overall – 64.9 in
  • Track Width, Front – 60.6 in
  • Track Width, Rear – 60.6 in
  • Min Ground Clearance – 6.2 in
  • Rear Door Opening Height – – TBD – in
  • Rear Door Opening Width – – TBD – in
  • Liftover Height – – TBD – in
  • Cargo Area Length @ Floor to Seat 1 – 57.00 in
  • Cargo Area Length @ Floor to Seat 2 – 29.30 in
  • Cargo Area Length @ Floor to Seat 3 –
  • Cargo Area Width @ Beltline – – TBD – in
  • Cargo Box Width @ Wheelhousings – – TBD – in
  • Cargo Box (Area) Height – 31.80 in
  • Cargo Volume to Seat 1 – 48.4 ftĀ³
  • Cargo Volume to Seat 2 – 18.7 ftĀ³
  • Cargo Volume to Seat 3 –
