2016 Ford Explorer Standard Equipment

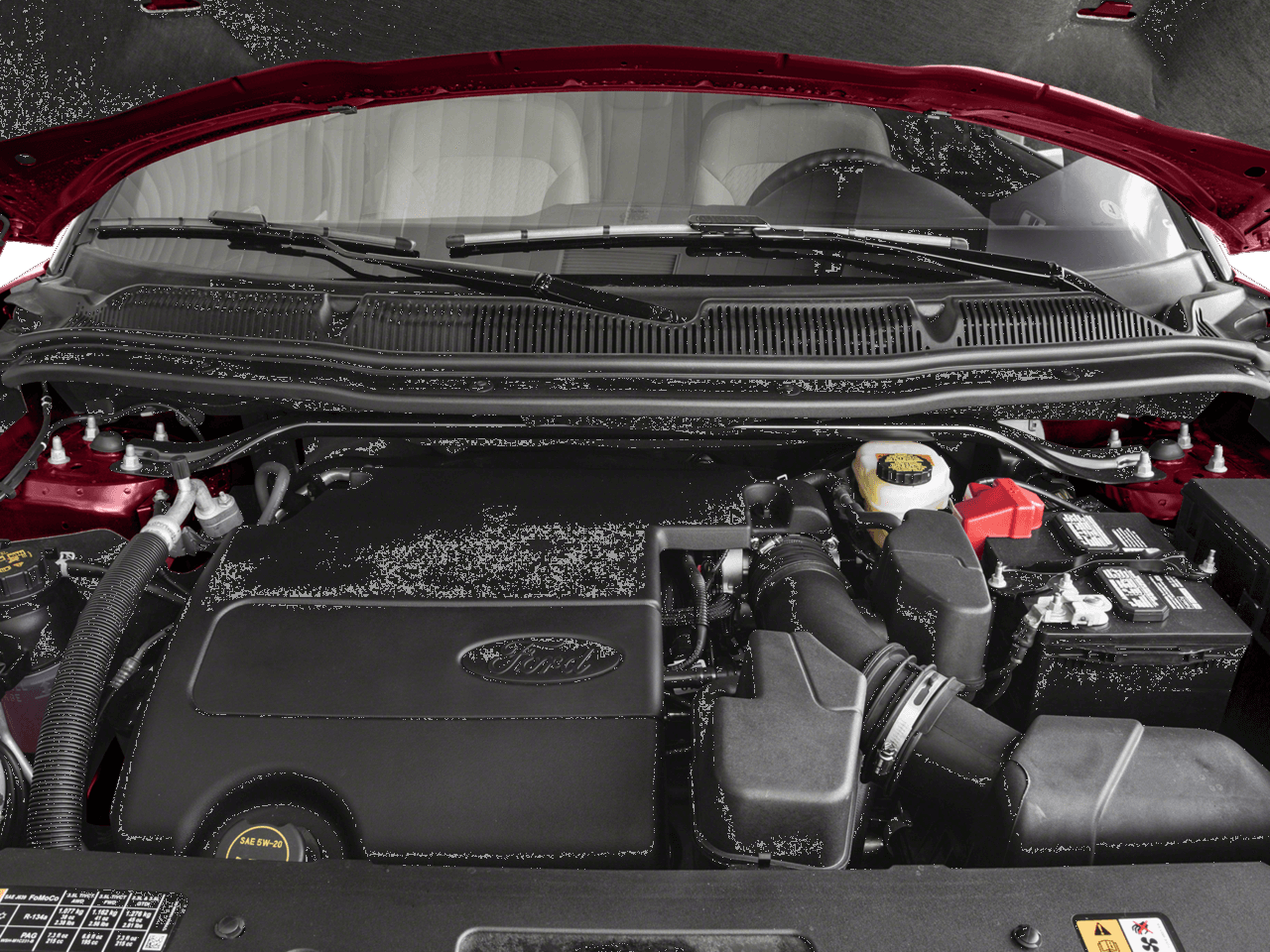

  • Engine: 3.5L Ti-VCT V6 (FFV) -inc: Flexible Fuel Vehicle (FFV) system is standard equipment for vehicles w/the 3.5L Ti-VCT V6 engine shipped to Federal Emissions States or Cross Border State dealers and is only available w/a Federal emissions system, (FFV system not available w/code 422 and requires code 936 or 423 if applicable for California Emissions State dealer destinations).Cross border states include AZ, DC, ID, NH, NV, OH, VA, WV Not standard equipment in CA Emissions States.
  • Transmission: 6-Speed SelectShift Automatic
  • 3.65 Axle Ratio
  • GVWR: 6,160 lbs
  • Automatic Full-Time Four-Wheel Drive
  • 58-Amp/Hr 540CCA Maintenance-Free Battery w/Run Down Protection
  • 175 Amp Alternator
  • Towing Equipment -inc: Trailer Sway Control
  • Gas-Pressurized Shock Absorbers
  • Front And Rear Anti-Roll Bars
  • Electric Power-Assist Speed-Sensing Steering
  • 18.6 Gal. Fuel Tank
  • Quasi-Dual Stainless Steel Exhaust w/Chrome Tailpipe Finisher
  • Auto Locking Hubs
  • Strut Front Suspension w/Coil Springs
  • Multi-Link Rear Suspension w/Coil Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control and Hill Hold Control

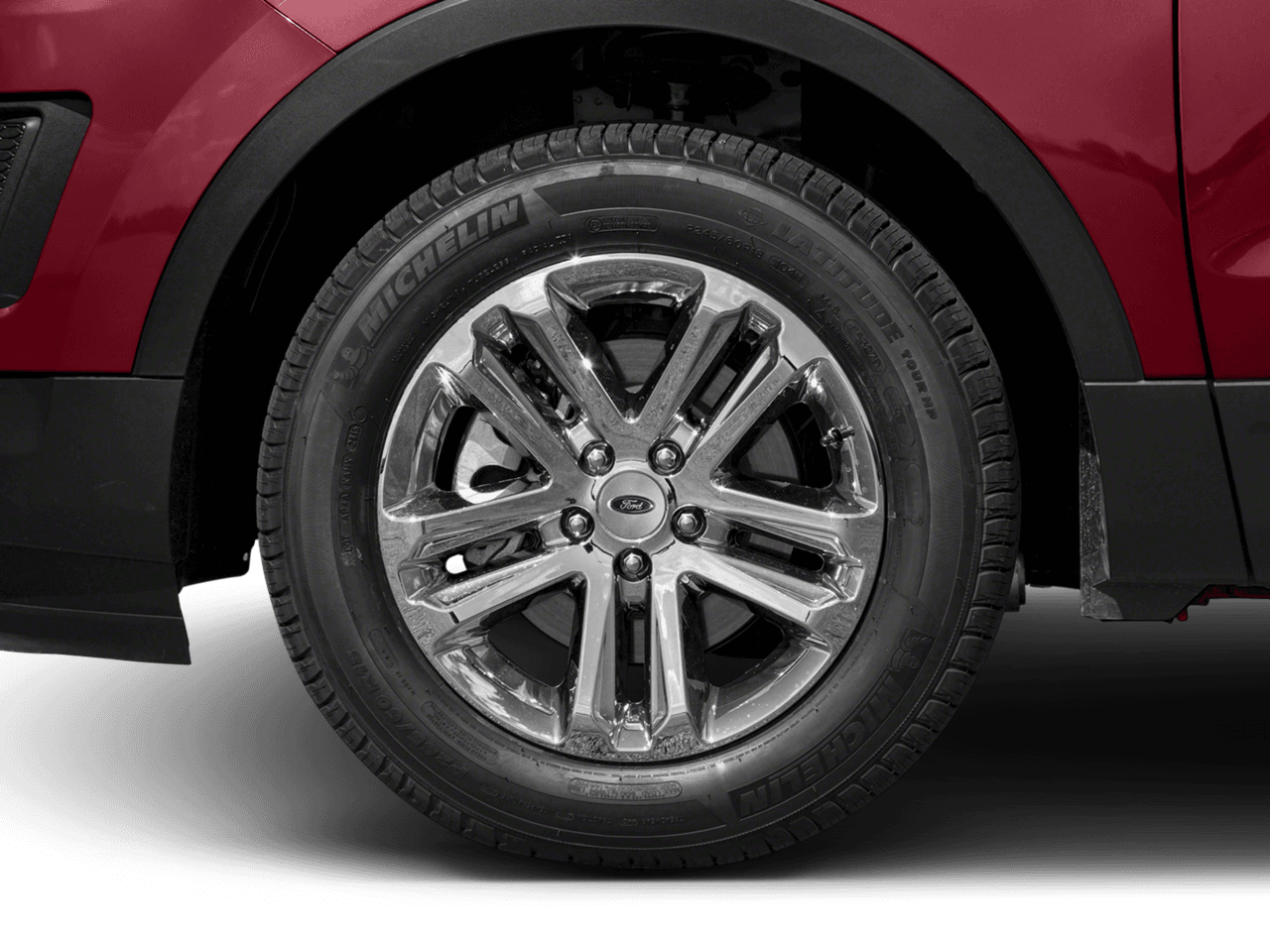

  • Wheels: 18″ Painted Aluminum
  • Tires: P245/60R18 AS BSW
  • Steel Spare Wheel
  • Compact Spare Tire Mounted Inside Under Cargo
  • Clearcoat Paint
  • Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent
  • Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent
  • Black Bodyside Cladding and Black Wheel Well Trim
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Black Power Side Mirrors w/Convex Spotter and Manual Folding
  • Fixed Rear Window w/Fixed Interval Wiper, Heated Wiper Park and Defroster
  • Deep Tinted Glass
  • Speed Sensitive Variable Intermittent Wipers
  • Galvanized Steel/Aluminum Panels
  • Lip Spoiler
  • Metal-Look Grille w/Chrome Surround
  • Liftgate Rear Cargo Access
  • Tailgate/Rear Door Lock Included w/Power Door Locks
  • Roof Rack Rails Only
  • Fully Automatic Aero-Composite Led Low Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off
  • LED Brakelights

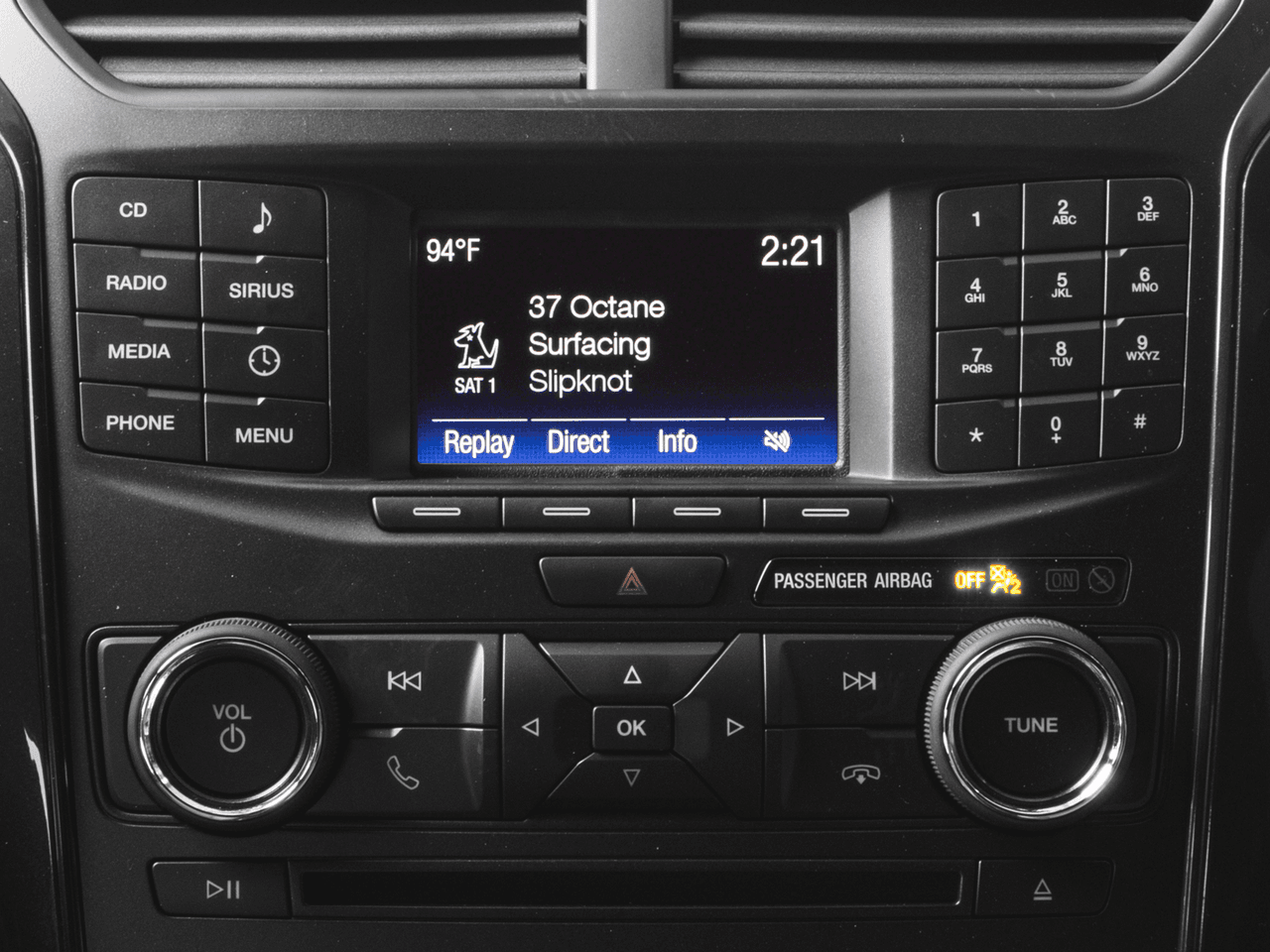

  • Radio: AM/FM Stereo w/Single CD/MP3 Capable -inc: 6 speakers
  • Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Steering Wheel Controls
  • Streaming Audio
  • Integrated Roof Antenna
  • SYNC -inc: enhanced voice recognition communications and entertainment system, 911 Assist, 4.2″ LCD screen in center stack, AppLink and (1) smart-charging USB port in the Media Hub, Note: SYNC AppLink lets you control some of your favorite compatible mobile apps w/your voice, It is compatible w/select smartphone platforms, Commands may vary by phone and AppLink software
  • Bluetooth Wireless Phone Connectivity
  • Driver Seat
  • Passenger Seat
  • 60-40 Folding Split-Bench Front Facing Manual Reclining Tumble Forward Cloth Rear Seat w/Manual Fore/Aft
  • Manual Tilt/Telescoping Steering Column

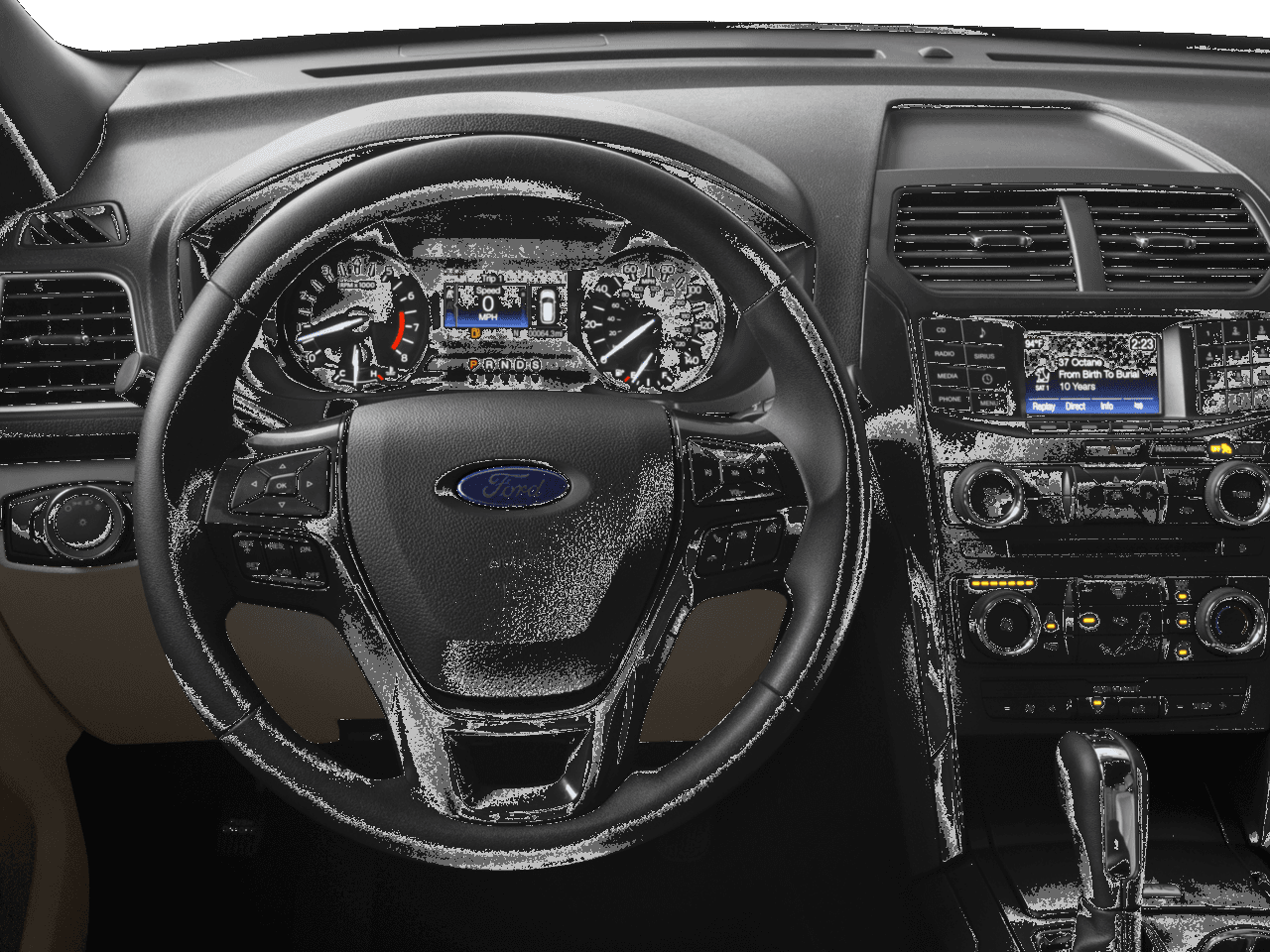

  • Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer
  • Power Rear Windows and Fixed 3rd Row Windows
  • Fixed 50-50 Split-Bench Cloth 3rd Row Seat Front, Manual Fold Into Floor and 2 Fixed Head Restraints
  • Front Cupholder
  • Rear Cupholder
  • Compass
  • Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button
  • Cruise Control w/Steering Wheel Controls
  • Manual Air Conditioning
  • Rear HVAC w/Separate Controls
  • HVAC -inc: Underseat Ducts, Auxiliary Rear Heater and Headliner/Pillar Ducts
  • Illuminated Locking Glove Box
  • Driver Foot Rest
  • Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert, Metal-Look Console Insert and Chrome/Metal-Look Interior Accents
  • Full Cloth Headliner
  • Cloth Door Trim Insert
  • Leather/Chrome Gear Shifter Material
  • Cloth Bucket Seats -inc: 8-way power driver seat w/power lumbar and manual recline, 4-way manual passenger manual passenger seat w/manual recline and 4-way driver and front-passenger head restraints
  • Day-Night Rearview Mirror
  • Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination

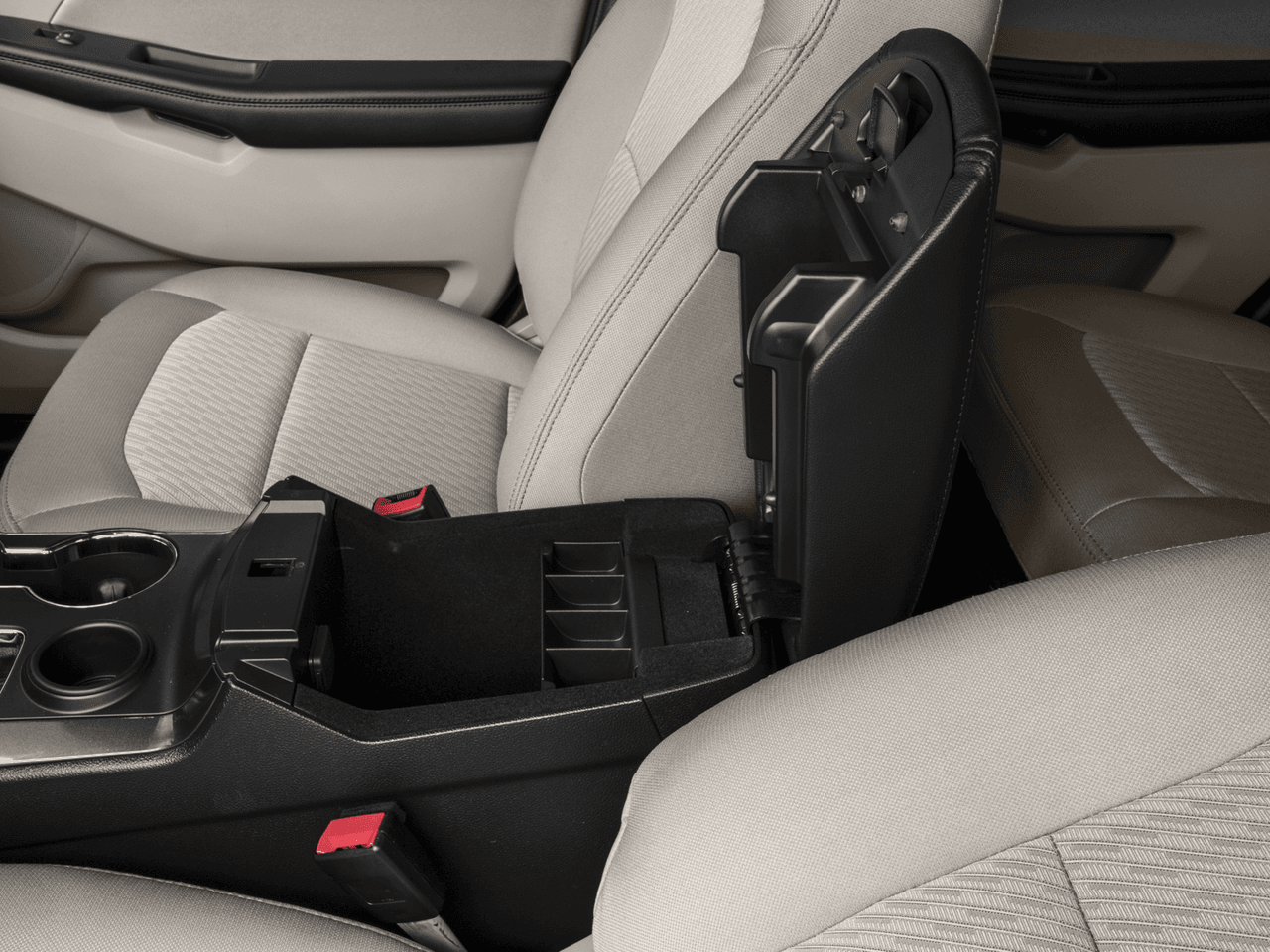

  • Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 4 12V DC Power Outlets
  • Front And Rear Map Lights
  • Fade-To-Off Interior Lighting
  • Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats
  • Carpet Floor Trim
  • Cargo Area Concealed Storage
  • Cargo Space Lights
  • FOB Controls -inc: Cargo Access
  • Driver / Passenger And Rear Door Bins
  • Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
  • Delayed Accessory Power
  • Power Door Locks w/Autolock Feature
  • Systems Monitor
  • Trip Computer
  • Outside Temp Gauge
  • Analog Display
  • Seats w/Cloth Back Material
  • Manual Adjustable Rear Head Restraints
  • Front Center Armrest
  • 2 Seatback Storage Pockets
  • Securilock Anti-Theft Ignition (pats) Engine Immobilizer
  • 4 12V DC Power Outlets
  • Air Filtration
  • AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
  • Terrain Management System ABS And Driveline Traction Control
  • Side Impact Beams
  • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
  • 911 Assist Emergency Sos
  • Tire Specific Low Tire Pressure Warning
  • Dual Stage Driver And Passenger Front Airbags
  • Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags
  • Airbag Occupancy Sensor
  • Passenger Knee Airbag
  • Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
  • Rear Child Safety Locks
  • Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
  • Back-Up Camera w/Washer
2016 Ford Explorer Available Options
  • ENGINE: 3.5L TI-VCT V6 (998)
  • ENGINE: 2.3L I-4 ECOBOOST (99H)
  • TRANSMISSION: 6-SPEED SELECTSHIFT AUTOMATIC (44J) – Standard
  • TRANSMISSION: 6-SPEED SELECTSHIFT AUTOMATIC (446) (446)
  • TRANSMISSION: 6-SPD SELECTSHIFT AUTOMATIC (TR-CG) (44C)
  • EQUIPMENT GROUP 100A (100A)
  • TIRES: P245/60R18 AS BSW LOW ROLLING RESISTANCE (undefined)
  • SHADOW BLACK (G1)
  • BLUE JEANS METALLIC (N1)
  • INGOT SILVER METALLIC (UX)
  • OXFORD WHITE (YZ)
  • RUBY RED METALLIC TINTED CLEARCOAT (RR)
  • STANDARD PAINT (undefined)
  • MEDIUM LIGHT CAMEL, CLOTH BUCKET SEATS (7L)
  • CALIFORNIA EMISSIONS SYSTEM -inc: Required on units for California, Connecticut, Delaware, Massachusetts, Maryland, Maine, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington registration, Optional for Cross-Border States (Arizona, District of Columbia, Delaware, Idaho, New Hampshire, Nevada, Ohio, Virginia and West Virginia) (422)
  • CALIFORNIA EMISSION EXEMPTION -inc: For public service and emergency vehicles, The exemption may only apply in certain California Emission states, Ordering dealer is responsible to contact the proper state authorities for clarification on qualifying exempted vehicles for registration, Only available on units sold for authorized public service or emergency service use (936)
  • CALIFORNIA EMISSIONS SYSTEM NOT REQUIRED -inc: Dealers ordering a vehicle without a California Emissions system and which is being shipped to a California Emissions State dealer are also required to use code 423 to attest either that the vehicle is not being registered in a California Emissions State or that code 936 is applicable, Note: In Maine, Rhode Island and Vermont, dealers cannot use code 423 for customers outside of California Emissions States locations (except Public Service/Emergency Vehicles – code 936) (423)
  • FEDERAL-EMISSIONS STATE DEALER ORDER -inc: For California Emissions States Registration, Federal Emissions State dealers ordering a California Emissions System (code 422) are also required to use code 93N to attest that the vehicle is to be registered in a California Emissions State, Note: It is a violation of federal law for a Federal Emissions State dealer to sell a vehicle w/a California Emissions System for registration in a Federal Emissions State, unless the vehicle also meets EPA standards (i.e, 50-state emissions) (93N)
  • ENGINE BLOCK HEATER (41H)
  • CLASS II TRAILER TOW PACKAGE (52R)
  • CLASS III TRAILER TOW PACKAGE (52T)
  • REAR BUMPER PROTECTOR (DEALER INSTALLED) (60V)
  • SPLASH GUARDS (DEALER INSTALLED) (50M)
  • REAR CARGO WELL PROTECTOR (DEALER INSTALLED) (85W)
  • INTERIOR CARGO COVER (DEALER INSTALLED) (60T)
  • ROOF RAIL CROSSBARS (DEALER INSTALLED) (50N)
  • SMOKER’S KIT (DEALER INSTALLED) (60X)
  • FRONT LICENSE PLATE BRACKET (153)
  • DAYTIME RUNNING LAMPS (DRL) (NON-CONFIGURABLE) (942)
  • COV REQUIRED (79V)
  • PRICED DORA (C09)
  • SIRIUSXM SATELLITE RADIO -inc: Note:, a 6-month prepaid subscription, Service is not available in Alaska and Hawaii, Subscriptions to all SiriusXM services are sold by SiriusXM after trial period, If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-866-635-2349, See SiriusXM Customer Agreement for complete terms at www.siriusxm.com, All fees and programming subject to change, Sirius, XM and all related marks and logos are trademakrs of Sirius XM Radio Inc (582)
  • INFLATABLE REAR SEATBELTS -inc: 2nd row outboard seating positions (90R)
  • ALL WEATHER FLOOR MATS (16N)
  • REVERSE SENSING SYSTEM (76R)
  • FLEET ADVERTISING CREDIT (undefined)
  • SHIP THRU: LEGGETT & PLATT CVP (31L)
  • BUILT: CHICAGO PLANT (D9G)
2016 Ford Explorer Consumer Information
  • Basic Years – 3
  • Basic Miles/km – 36,000
  • Drivetrain Years – 5
  • Drivetrain Miles/km – 60,000
  • Corrosion Years – 5
  • Corrosion Miles/km – Unlimited
  • Roadside Assistance Years – 5
  • Roadside Assistance Miles/km – 60,000
  • Overall Rating – * * * * *
  • Overall Frontal Barrier Crash Rating – * * * * *
  • Frontal Barrier Crash Rating Driver – * * * * (Male)
  • Frontal Barrier Crash Rating Passenger – * * * * * (Female)
  • Overall Side Crash Rating – * * * * *
  • Side Barrier Rating – * * * * *
  • Side Barrier Rating Driver – * * * * * (Male)
  • Side Barrier Rating Passenger Rear Seat – * * * * * (Female)
  • Side Pole Rating Driver Front Seat – * * * * * (Female)
  • Male/Female Dummy Note – Male: Average sized adult male dummy in 35-MPH crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs. Female: Small-sized adult female dummy in 35-mph crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs.
  • Combined Side Rating Front Seat – * * * * *
  • Combined Side Rating Rear Seat – * * * * *
  • Rollover Rating – * * * *
  • Rollover Rating Dynamic Test Result – No Tip
  • Risk of Rollover – 17.4%
  • Rollover Note – Dynamic (moving) test results (Tip or No Tip) and measured rollover-related properties determine vehicle’s risk of rollover in single vehicle crash and its rollover rating. The Rollover Resistance Rating utilizes a “fishhook” maneuver which is a series of abrupt turns at varying speeds to see how “top-heavy” a vehicle is.
2016 Ford Explorer Technical Specifications
  • Vehicle Name – Ford Explorer
  • Body Style – Sport Utility
  • Drivetrain – Four Wheel Drive
  • Trans Order Code – 446 (99H&446), 446 (446), 44J, 44C (998-1&44C), 44C (998-2&44C), 44C (44C)
  • Trans Type – 6
  • Trans Description Cont. – Automatic w/OD
  • Trans Description Cont. Again –
  • First Gear Ratio (:1) – 4.58 (99H&446), 4.58 (446), 4.48
  • Second Gear Ratio (:1) – 2.96 (99H&446), 2.96 (446), 2.87
  • Third Gear Ratio (:1) – 1.91 (99H&446), 1.91 (446), 1.84
  • Fourth Gear Ratio (:1) – 1.45 (99H&446), 1.45 (446), 1.41
  • Fifth Gear Ratio (:1) – 1.00
  • Sixth Gear Ratio (:1) – 0.75 (99H&446), 0.75 (446), 0.74, 0.75 (998-1&44C), 0.75 (998-2&44C), 0.75 (44C)
  • Reverse Ratio (:1) – 2.88
  • Final Drive Axle Ratio (:1) – 3.65
  • EPA Classification – Standard SUV 4WD
  • Model Group –
  • Vehicle Segment –
  • Vehicle Type –
  • Passenger Capacity – 7
  • Passenger Volume – 151.7 ft³
  • Front Head Room – 41.4 in
  • Front Leg Room – 42.9 in
  • Front Shoulder Room – 61.5 in
  • Front Hip Room – 57.3 in
  • Second Head Room – 40.6 in
  • Second Leg Room – 39.5 in
  • Second Shoulder Room – 61 in
  • Second Hip Room – 56.8 in
  • Third Head Room – 37.8 in
  • Third Leg Room – 32 in
  • Third Shoulder Room – 50.8 in
  • Third Hip Room – 40.7 in
  • Base Curb Weight – 4629 lbs
  • Fuel Economy Est-Combined – 21 MPG (99H&446), 19 MPG
  • EPA Fuel Economy Est – City – 18 MPG (99H&446), 16 MPG
  • EPA Fuel Economy Est – Hwy – 26 MPG (99H&446), 23 MPG
  • Dead Weight Hitch – Max Trailer Wt. – 2000 lbs, 3000 lbs (52R), 5000 lbs (52T)
  • Dead Weight Hitch – Max Tongue Wt. – 200 lbs, 300 lbs (52R), 500 lbs (52T)
  • Wt Distributing Hitch – Max Trailer Wt. – 2000 lbs, 3000 lbs (52R), 5000 lbs (52T)
  • Wt Distributing Hitch – Max Tongue Wt. – 200 lbs, 300 lbs (52R), 500 lbs (52T)
  • Maximum Trailering Capacity – 2000 lbs, 3000 lbs (52R), 5000 lbs (52T)
  • Engine Order Code – 998 (998-2&44J), 99H (99H&446), 998 (998-1), 998 (998-2), 99H (99H), 998-1, 998 (998-1&44C), 998 (998-2&44C)
  • Engine Type – Intercooled Turbo Premium Unleaded I-4 (99H&446), Intercooled Turbo Premium Unleaded I-4 (99H), Regular Unleaded V-6
  • Displacement – 2.3 L/140 (99H&446), 2.3 L/140 (99H), 3.5 L/213
  • Fuel System – Gasoline Direct Injection (99H&446), Gasoline Direct Injection (99H), Sequential MPI
  • SAE Net Horsepower @ RPM – 290 @ 6500 (998-2&44J), 280 @ 5600 (99H&446), 290 @ 6500 (998-2), 280 @ 5600 (99H), 290 @ 6400, 290 @ 6500 (998-2&44C)
  • SAE Net Torque @ RPM – 310 @ 3000 (99H&446), 310 @ 3000 (99H), 255 @ 4000
  • Engine Displacement Units – 3.5 undefined, 2.3 undefined (99H), 3.5 undefined (998)
  • Engine Camshaft – DOHC undefined, DOHC undefined (998), DOHC undefined (99H)
  • Engine Block Type – aluminum undefined, aluminum undefined (998), aluminum undefined (99H)
  • Engine Cylinder Count – 6 undefined, 6 undefined (998), 4 undefined (99H)
  • Engine Valve Count – 4 undefined, 4 undefined (99H), 4 undefined (998)
  • Cold Cranking Amps @ 0° F (Primary) – 540
  • Maximum Alternator Capacity (amps) – 175
  • Tons/yr of CO2 Emissions @ 15K mi/year – 8.4 (99H&446), 9.3
  • Suspension Type – Front – Strut
  • Suspension Type – Rear – Multi-Link
  • Suspension Type – Front (Cont.) – Strut
  • Suspension Type – Rear (Cont.) – Multi-Link
  • Front Tire Order Code –
  • Rear Tire Order Code –
  • Spare Tire Order Code –
  • Front Tire Size – P245/60R18 (-NONTR-A), P245/60HR18
  • Rear Tire Size – P245/60R18 (-NONTR-A), P245/60HR18
  • Spare Tire Size – Compact
  • Front Wheel Size – 18 X 7.5 in
  • Rear Wheel Size – 18 X 7.5 in
  • Spare Wheel Size – Compact in
  • Front Wheel Material – Aluminum
  • Rear Wheel Material – Aluminum
  • Spare Wheel Material – Steel
  • Steering Type – Rack-Pinion
  • Turning Diameter – Curb to Curb – 38.9 ft
  • Brake Type – 4-Wheel Disc
  • Brake ABS System – 4-Wheel
  • Disc – Front (Yes or ) – Yes
  • Disc – Rear (Yes or ) – Yes
  • Front Brake Rotor Diam x Thickness – 12.8 in
  • Rear Brake Rotor Diam x Thickness – 12.8 in
  • Drum – Rear (Yes or ) –
  • Rear Drum Diam x Width –
  • Fuel Tank Capacity, Approx – 18.6 gal
  • Wheelbase – 112.8 in
  • Length, Overall – 198.3 in
  • Width, Max w/o mirrors – 78.9 in
  • Height, Overall – 70 in
  • Track Width, Front – 67 in
  • Track Width, Rear – 67 in
  • Min Ground Clearance – 8.3 in
  • Cargo Volume to Seat 1 – 80.7 ft³
  • Cargo Volume to Seat 2 – 43.8 ft³
  • Cargo Volume to Seat 3 – 21 ft³
