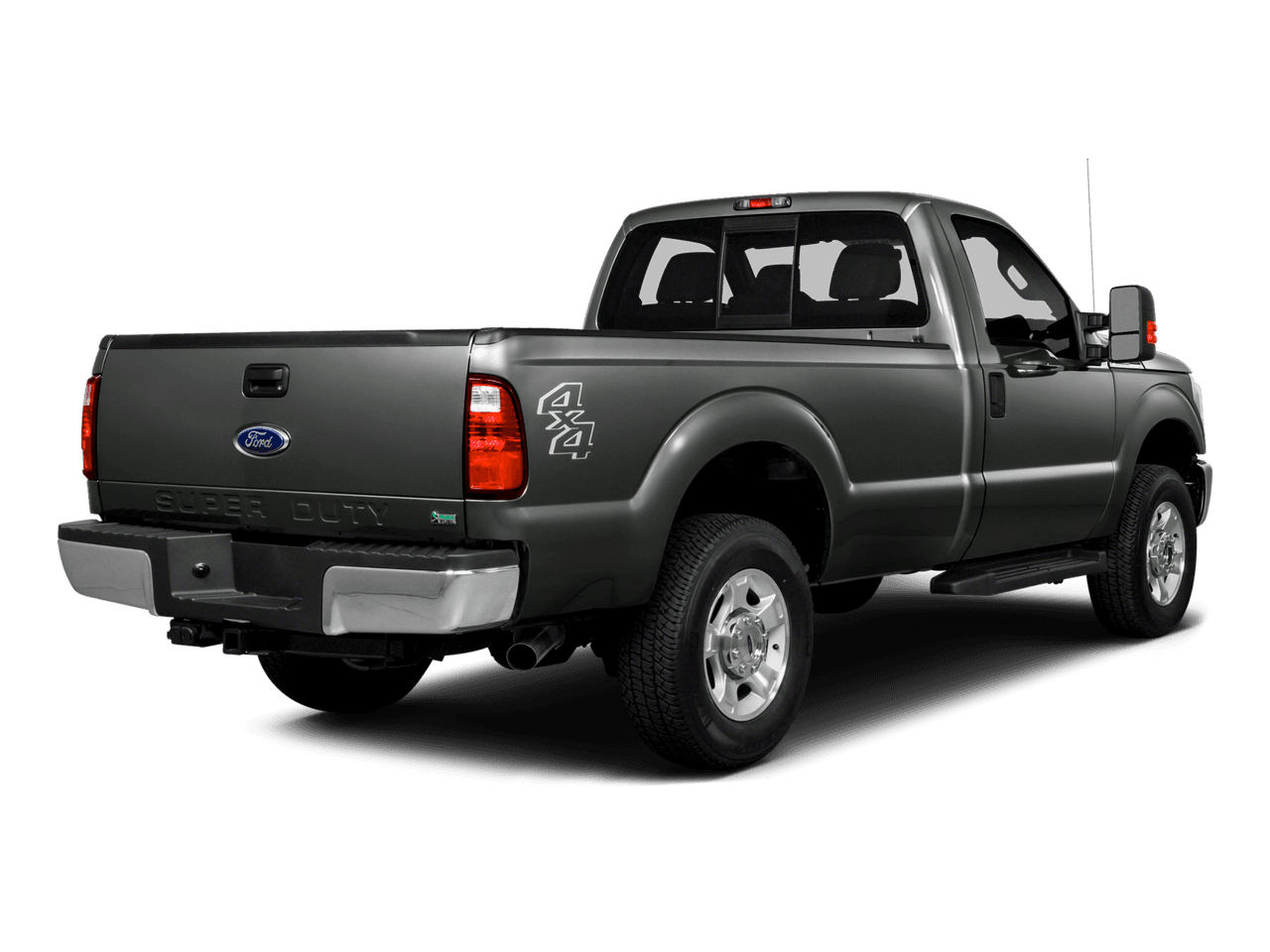

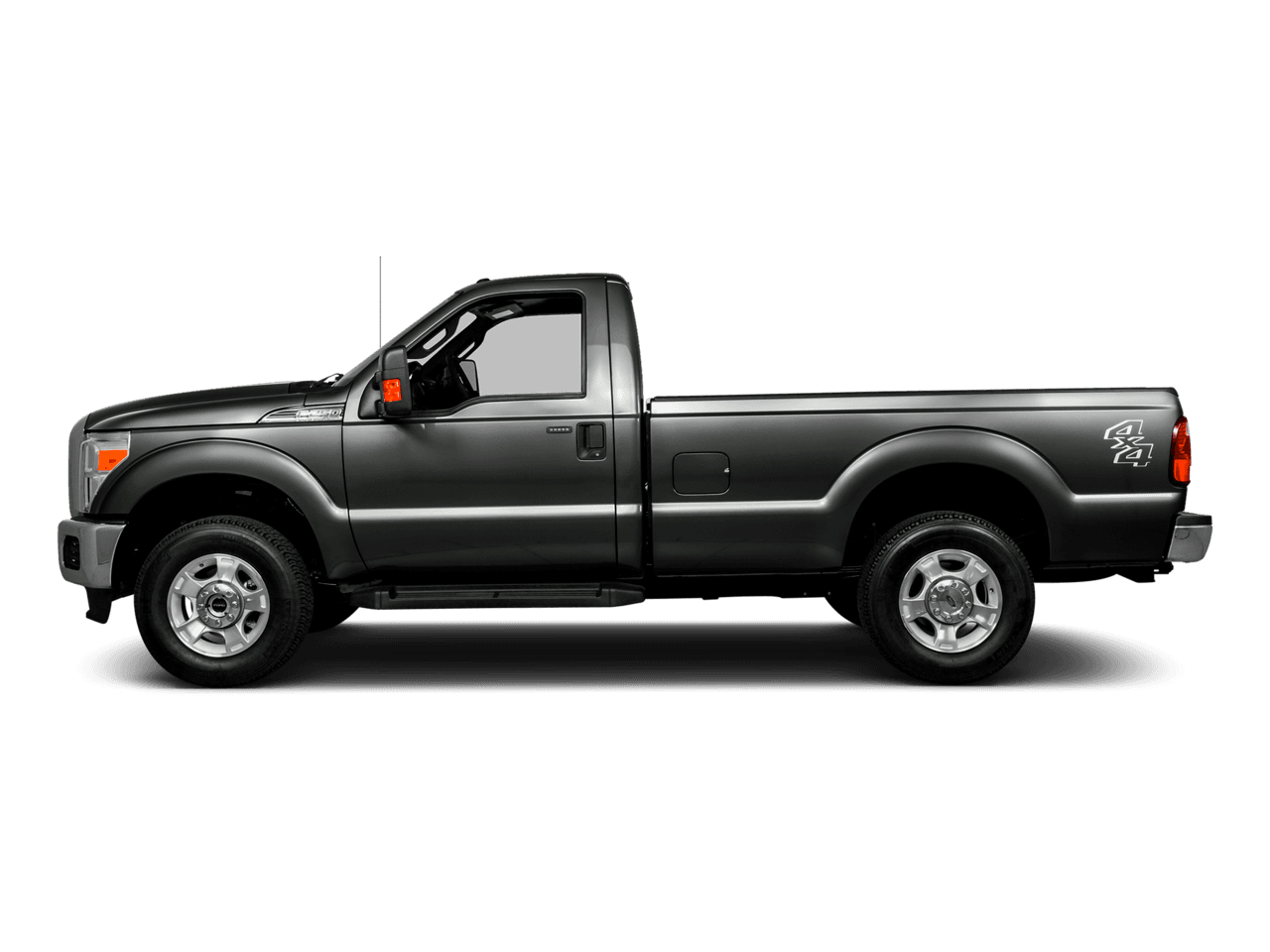

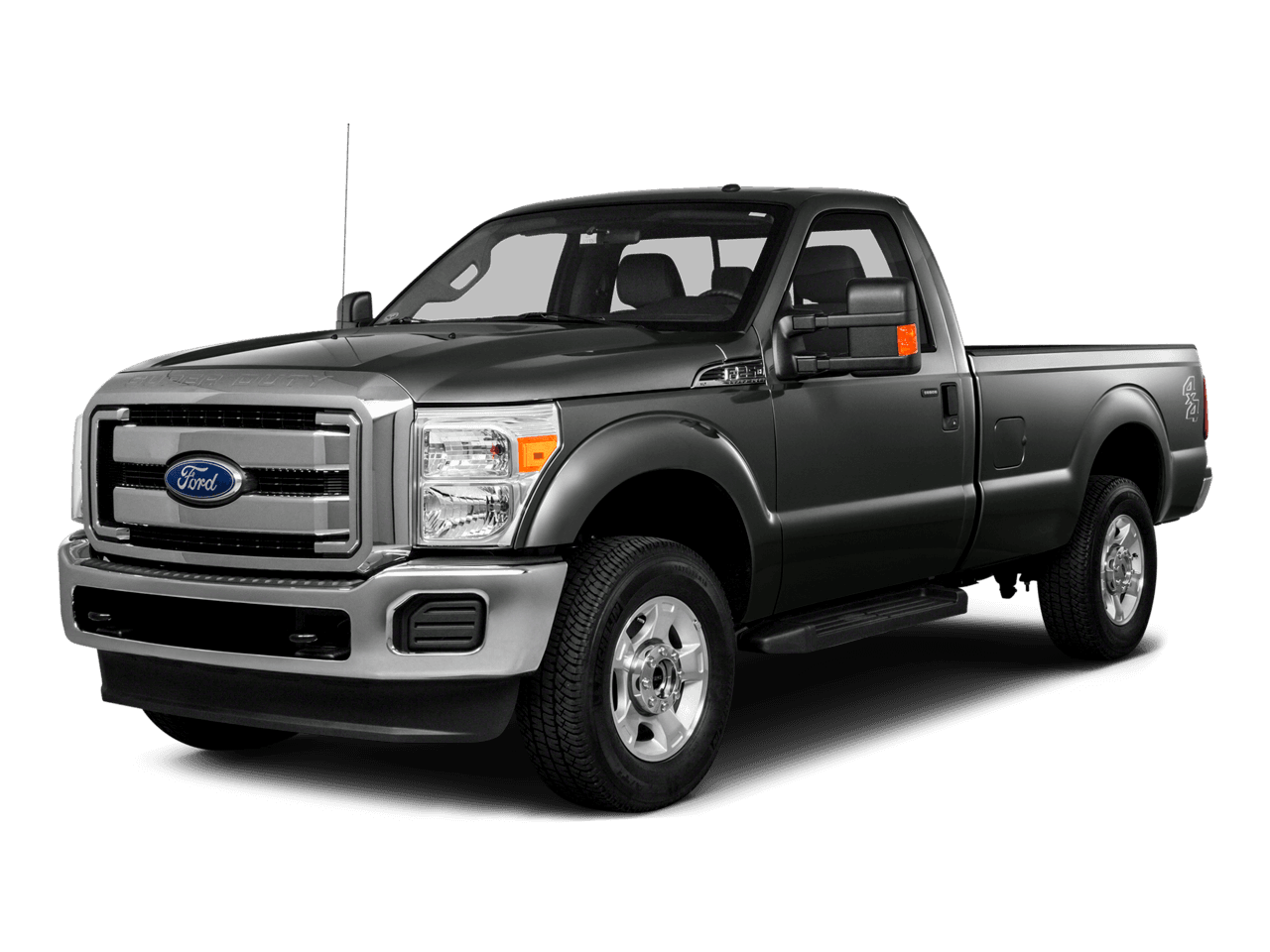

2016 Ford Super Duty F-250 SRW

4WD Reg Cab 137" XLT
MSRP: $39,175
Trims
2016 Ford Super Duty F-250 SRW Standard Equipment
  • Engine: 6.2L 2-Valve SOHC EFI NA V8 Flex-Fuel
  • Transmission: TorqShift 6-Speed Automatic -inc: SelectShift
  • 3.73 Axle Ratio
  • GVWR: 10,000 lb Payload Package
  • Transmission w/Oil Cooler
  • Manual Transfer Case
  • Part-Time Four-Wheel Drive
  • 72-Amp/Hr 650CCA Maintenance-Free Battery w/Run Down Protection
  • 157 Amp Alternator
  • Trailer Wiring Harness
  • Class V Towing Equipment -inc: Hitch, Brake Controller and Trailer Sway Control
  • 3580# Maximum Payload
  • HD Shock Absorbers
  • Front Anti-Roll Bar
  • Firm Suspension
  • Hydraulic Power-Assist Steering
  • 35 Gal. Fuel Tank
  • Single Stainless Steel Exhaust
  • Manual Locking Hubs
  • Front Suspension w/Coil Springs
  • Leaf Rear Suspension w/Leaf Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist and Hill Hold Control
  • Wheels: 18″ Cast Aluminum -inc: bright hub covers/center ornaments
  • Tires: LT275/65Rx18E BSW A/S
  • Regular Box Style
  • Steel Spare Wheel
  • Full-Size Spare Tire Stored Underbody w/Crankdown
  • Clearcoat Paint
  • Chrome Front Bumper w/2 Tow Hooks
  • Chrome Rear Step Bumper
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Manual Extendable Trailer Style Mirrors
  • Black Power Heated Side Mirrors w/Convex Spotter, Manual Folding and Turn Signal Indicator
  • Fixed Rear Window
  • Variable Intermittent Wipers
  • Deep Tinted Glass
  • Fully Galvanized Steel Panels
  • Front License Plate Bracket
  • Chrome Grille
  • Tailgate Rear Cargo Access
  • Manual Tailgate/Rear Door Lock
  • Aero-Composite Halogen Headlamps
  • Cargo Lamp w/High Mount Stop Light
  • Perimeter/Approach Lights
  • Radio: AM/FM Stereo/Single-CD/MP3 Player -inc: digital clock, 4-speakers and auxiliary audio input jack
  • Fixed Antenna
  • SYNC w/MyFord Communications/Entertainment System -inc: Voice-activated, 911 assist, vehicle health report (VHR), traffic, directions and information services, 1 USB port and AppLink
  • SiriusXM Satellite Radio -inc: SiriusXM U.S, satellite service is available in the 48 contiguous United States and D.C
  • Front Seats w/Manual Driver Lumbar
  • 4-Way Driver Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support
  • 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
  • Manual Tilt/Telescoping Steering Column
  • Gauges -inc: Speedometer, Odometer, Oil Pressure, Engine Coolant Temp, Tachometer, Transmission Fluid Temp, Engine Hour Meter and Trip Odometer
  • Front Cupholder
  • Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
  • Cruise Control w/Steering Wheel Controls
  • Manual Air Conditioning
  • Glove Box
  • Interior Trim -inc: Chrome Interior Accents
  • Full Cloth Headliner
  • Urethane Gear Shifter Material
  • Cloth 40/20/40 Split Bench Seat -inc: 20% locking center under seat storage, center armrest, cupholder, storage and 4-way adjustable driver/passenger headrests
  • Day-Night Rearview Mirror
  • Driver And Passenger Visor Vanity Mirrors
  • 3 12V DC Power Outlets
  • Front Map Lights
  • Fade-To-Off Interior Lighting
  • Full Carpet Floor Covering -inc: Carpet Front Floor Mats
  • Underhood And Pickup Cargo Box Lights
  • Instrument Panel Bin, Dashboard Storage, Driver And Passenger Door Bins
  • Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
  • Delayed Accessory Power
  • Power Door Locks
  • Systems Monitor
  • Outside Temp Gauge
  • Analog Display
  • Manual w/Tilt Front Head Restraints
  • Securilock Anti-Theft Ignition (pats) Engine Immobilizer
  • Perimeter Alarm
  • AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
  • ABS And Driveline Traction Control
  • Side Impact Beams
  • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
  • Low Tire Pressure Warning
  • Dual Stage Driver And Passenger Front Airbags w/Passenger Off Switch
  • Curtain 1st Row Airbags
  • Mykey System -inc: Top Speed Limiter, Audio Volume Limiter, Early Low Fuel Warning, Programmable Sound Chimes and Beltminder w/Audio Mute
  • Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters
2016 Ford Super Duty F-250 SRW Available Options
  • ENGINE: 6.2L 2-VALVE SOHC EFI NA V8 FLEX-FUEL (996) – Standard
  • ENGINE: 6.7L POWER STROKE V8 TURBO DIESEL B20 (99T)
  • TRANSMISSION: TORQSHIFT 6-SPEED AUTOMATIC -inc: SelectShift (44P) – Standard
  • TRANSMISSION: TORQSHIFT 6-SPEED AUTO W/OD (6.7L) -inc: SelectShift (44W)
  • ORDER CODE 603A (603A)
  • 3.73 AXLE RATIO (X37) – Standard
  • 3.31 AXLE RATIO (X31)
  • 3.55 AXLE RATIO (X35)
  • ELECTRONIC LOCKING W/3.31 AXLE RATIO (X3H)
  • ELECTRONIC LOCKING W/3.73 AXLE RATIO (X3E)
  • ELECTRONIC LOCKING W/4.30 AXLE RATIO (X4M)
  • ELECTRONIC LOCKING W/3.55 AXLE RATIO (X3J)
  • WHEELS: 18″ CAST ALUMINUM -inc: bright hub covers/center ornaments (648) – Standard
  • WHEELS: 17″ CAST ALUMINUM -inc: bright hub covers/center ornaments (64W)
  • TIRES: LT275/65RX18E BSW A/S (TCH) – Standard
  • TIRES: LT245/75RX17E BSW A/S -inc: Spare is LT245/75R17E A/T BSW plus (TBK)
  • TIRES: LT265/70RX17E OWL A/T (TCD)
  • TIRES: LT275/70RX18E BSW A/T (TDX)
  • TIRES: LT275/70RX18E OWL A/T -inc: Spare tire LT275/70Rx18E BSW A/T (TDU)
  • STANDARD PAINT (undefined)
  • SHADOW BLACK (G1)
  • BLUE JEANS METALLIC (N1)
  • GREEN GEM METALLIC (W6)
  • OXFORD WHITE (Z1)
  • BRONZE FIRE METALLIC (H7)
  • INGOT SILVER METALLIC (UX)
  • CARIBOU METALLIC (H5)
  • RACE RED (PQ)
  • MAGNETIC METALLIC (J7)
  • RUBY RED METALLIC TINTED CLEARCOAT (RR)
  • STEEL, CLOTH 40/20/40 SPLIT BENCH SEAT -inc: 20% locking center under seat storage, center armrest, cupholder, storage and 4-way adjustable driver/passenger headrests (3S)
  • ADOBE, CLOTH 40/20/40 SPLIT BENCH SEAT -inc: 20% locking center under seat storage, center armrest, cupholder, storage and 4-way adjustable driver/passenger headrests (3A)
  • CAMPER PACKAGE (471)
  • SNOW PLOW PREP PACKAGE -inc: NOTE: Restrictions apply; see Supplemental Reference or Body Builders Layout Book for details (473)
  • HEAVY SERVICE PACKAGE FOR PICK-UP BOX DELETE -inc: heavy service front springs (200 lbs, upgrade above the spring computer selected as a consequence of options chosen, Not included if maximum springs have been computer selected as standard equipment) and rear auxiliary springs, NOTE: Salesperson’s Source Book or Ford RV Trailer Towing Guide should be consulted for specific trailer towing or camper limits and corresponding required equipment, axle ratios and model availability, Rear Stabilizer Bar (63R)
  • FX4 OFF-ROAD PACKAGE (17X)
  • XLT INTERIOR PACKAGE -inc: 6-Way Power Driver’s Seat, SecuriCode Keyless Entry Keypad (Driver-Side), Adjustable Pedals, Auto-Lock/Auto-Unlock, Auto-Lamp/Rain-Lamp (96I)
  • XLT VALUE PACKAGE -inc: 6-Way Power Driver’s Seat, SecuriCode Keyless Entry Keypad (Driver-Side), Adjustable Pedals, Reverse Sensing System, 4.2″ LCD Productivity Screen, Electrochromic Mirror, Auto-Lock/Auto-Unlock, Auto-Lamp/Rain-Lamp, Fog Lamps (17V)
  • 50-STATE EMISSIONS SYSTEM (425)
  • CALIFORNIA EMISSIONS SYSTEM NOT REQUIRED -inc: Dealers ordering a vehicle w/a 6.2L engine without the 50-State Emissions System and which is being shipped to a California Emissions State dealer are also required to use order code 423 to attest either that the vehicle is not being registered in a California Emissions State or that order code 936 is applicable, Note: In Maine, Rhode Island and Vermont, dealers cannot use order code 423 for customers outside of California Emissions States locations (except Public Service/Emergency Vehicles – 936) (423)
  • CALIFORNIA EMISSIONS EXEMPTION -inc: For Public Service/Emergency vehicles, This exemption may only apply in certain California Emissions states, Ordering dealer is responsible to contact the proper state authorities for clarification on qualifying exempted vehicles for registration, Only available on units sold for authorized public service or emergency service use (936)
  • TRANSMISSION POWER TAKE-OFF PROVISION -inc: transmission mounted live drive and stationary mode PTO (62R)
  • 4X4 ELECTRONIC-SHIFT-ON-THE-FLY (ESOF) -inc: manual locking hubs and auto rotary control on instrument panel (213)
  • OPERATOR COMMANDED REGENERATION (OCR) (98R)
  • DUAL ALTERNATORS (TOTAL 357-AMPS) (67A)
  • EXTRA HEAVY-DUTY 200-AMP ALTERNATOR (67D)
  • ENGINE BLOCK HEATER (41H)
  • 5TH WHEEL/GOOSENECK HITCH PREP PACKAGE -inc: 1 frame under-bed cross member, 5 pickup bed attachment points w/plugs and 1 integrated 7-pin connector on driver’s side pickup bed wall, 5th wheel hitch compatibility: the 5th Wheel/Gooseneck Prep Package (53W) is compatible w/the factory orderable 5th Wheel Hitch Kits (15K and 15L) and dealer-installed Ford custom accessories 5th Wheel Hitch Kit by Reese – part #BC3Z-19D520-A (8ft box only), The prep package is also compatible w/Reese Signature Series 5th wheel hitch kits updated w/a new Leg Service Kit – part #BC3Z-A00A25-A (8ft box only), The 5th Wheel Hitch Kit (15K), 5th Wheel Hitch Kit (15L) and dealer-installed Ford custom accessories 5th Wheel Hitch Kit by Reese – part #BC3Z-19D520-A is not released to the short box (6.75ft box), NOTE: the short pickup box provides less clearance between the cab and 5th wheel trailer compared to long box pickups, The receiver centerline of the hitch should be mounted at least 2″ forward from the rear-axle of the truck chassis, When selecting a trailer and tow vehicle, it’s critical that this combination provide clearance between the cab and tow vehicle for turns up to and including 90 degrees, Failure to follow this recommendation could result in the trailer contacting the cab of the tow vehicle during tight turns, Gooseneck hitch compatibility: the 5th Wheel/Gooseneck Prep Package (53W) is compatible only w/the factory orderable Gooseneck Hitch Kit (15J) or dealer-installed Ford customer accessories Gooseneck Hitch by Reese – part #BC3Z-19F503-A (8ft box and 6.75 ft box) (53W)
  • GOOSENECK HITCH KIT (PRE-INSTALLED) -inc: Custom accessory (15J)
  • 18K 5TH WHEEL HITCH KIT (PRE-INSTALLED) -inc: Custom accessory (15L)
  • DROP-IN BEDLINER (PRE-INSTALLED) -inc: Custom accessory (85L)
  • FRONT/REAR SPLASH GUARDS/MUD FLAPS (PRE-INSTALLED) -inc: Custom accessory (61S)
  • AMBER LED WARNING STROBE (PRE-INSTALLED) -inc: Custom accessory, center high-mounted stop light bar and 2 hood mounted lights (87S)
  • WHEEL WELL LINER (PRE-INSTALLED) -inc: Custom accessory (61L)
  • EXTERIOR BACKUP ALARM (PRE-INSTALLED) -inc: Custom accessory (76C)
  • BED MAT (PRE-INSTALLED) -inc: Custom accessory (85M)
  • SOFT FOLD TONNEAU PICKUP BOX COVER (PRE-INSTALLED) -inc: Custom accessory (949)
  • TRANSFER CASE & FUEL TANK SKID PLATES (41P)
  • PICKUP BOX DELETE -inc: Deletes tie-down hooks, tailgate, bodyside moldings and 7/4 pin connector, 17.5K trailer hitch receiver (see Trailer Tow guide for rating), Incomplete vehicle package – requires further manufacture and certification by a final stage manufacturer, In addition, Ford urges manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual and the Ford Truck Body Builder’s Layout Book (and applicable supplements), Rear Bumper Delete, Spare Wheel, Tire, Carrier & Jack Delete (66D)
  • GVWR: 9,900 LB PAYLOAD PACKAGE (68D)
  • SPARE TIRE, WHEEL, CARRIER & JACK (512)
  • POWERSCOPE TRAILER TOW MIRRORS -inc: power telescoping, power fold-away w/power heated glass, heated convex spotter mirror and integrated clearance lamps/turn signals (54F)
  • MANUAL SLIDING REAR WINDOW W/PRIVACY GLASS (433)
  • TAILGATE STEP & HANDLE (85G)
  • 6″ ANGULAR BLACK MOLDED-IN-COLOR RUNNING BOARDS (18B)
  • ROOF MARKER/CLEARANCE LAMPS (592)
  • DAYTIME RUNNING LAMPS (DRL) (942)
  • HEAVY SERVICE FRONT SUSPENSION PACKAGE -inc: heavy service front springs (1 up upgrade above the spring computer selected as a consequence of options chosen, Not included if maximum springs have been computer selected as standard equipment), Recommended only on vehicles which will permanently utilize aftermarket equipment such as heavy-duty winches, brush guards or other apparatus which loads the front axle to the specified Gross Axle Weight Rating (GAWR), NOTE: May result in deterioration of ride quality, Vehicle ride height will increase w/the addition of this package (67H)
  • STOWABLE BED EXTENDER (85B)
  • CABLE LOCK BY MASTER LOCK -inc: a 9.5′ rugged retractable cable that helps deter theft and secure personal items in the bed of the truck (87C)
  • COV REQUIRED (79V)
  • PRICED DORA (C09)
  • SPEED LIMITATION – 65 MPH GOVERNED TOP SPEED (926)
  • SPEED LIMITATION – 75 MPH GOVERNED TOP SPEED (927)
  • TOUGH BED SPRAY-IN BEDLINER -inc: tailgate-guard, black box bed tie-down hooks and black bed attachment bolts (85S)
  • ENGINE IDLE SHUTDOWN (63T)
  • CNG/PROPANE GASEOUS ENGINE PREP PACKAGE -inc: hardened engine intake valves, valve seats and bi-fuel manifold, NOTE: This package does not include CNG/Propane fuel tanks, lines etc, Vehicle will be equipped w/the standard factory gasoline fuel system, Additional equipment combined w/certified calibration reflash is required, from an external upfitter, to convert the vehicle to a CNG/Propane fueled vehicle, See Alternative Fuel Buyers Guide: www.ford.com/altfuelbuyersguide, Ford Motor Company does not provide an exhaust or evaporative emissions certification w/this option when converted to use CNG or Propane fuel, Ford does not represent that a vehicle converted to use CNG or Propane will comply w/all applicable U.S, or Canadian safety standards, It is the responsibility of the final stage manufacturer (body-builder, installer, alterer or subsequent stage manufacturer) to determine that any vehicle converted to use CNG or Propane complies w/U.S, Federal, California or Canadian exhaust evaporative emissions requirements, Federal fuel economy standards, U.S, and Canadian safety standards, labeling and any other requirements (98F)
  • RAPID-HEAT SUPPLEMENTAL CAB HEATER (41A)
  • CARPET DELETE (166)
  • ALL-WEATHER FLOOR MATS -inc: Deletes carpeted mats (16S)
  • REVERSE SENSING SYSTEM (76R)
  • REMOTE START SYSTEM (76S)
  • UPFITTER SWITCHES (4) -inc: Located on instrument panel (66S)
  • FORD TELEMATICS POWERED BY TELOGIS -inc: 1 year of Ford Telematics Powered By Telogis service (requires additional subscription service), Onboard device that tracks vehicle location, speed and idle time w/optional vehicle diagnostics and maintenance reports (87T)
  • REAR-VIEW CAMERA (76V)
  • REAR VIEW CAMERA & PREP KIT (76D)
  • ADJUSTABLE PEDALS (62M)
  • FLEET FUEL FILL DELETE -inc: Credit varies, Contact Fleet Headquarters (1-800-668-5515) for details (693)
  • FLEET ADVERTISING CREDIT (undefined)
  • SHIP-THRU: READING EQUIPMENT (31S)
  • SHIP-THRU: ALTEC (31A)
  • SHIP-THRU: IMPCO (31Q)
  • SHIP-THRU: KNAPHEIDE TRUCK EQUIPMENT (31V)
  • SHIP-THRU: ZORESCO EQUIPMENT (31C)
  • SHIP-THRU: L&Z CO. (31E)
  • SHIP-THRU: LOUISVILLE TRUCK EQUIPMENT (31L)
  • SHIP-THRU: MANNING LIGHT TRUCK EQUIPMENT (31M)
  • SHIP-THRU: MONROE TRUCK EQUIPMENT (31N)
  • SHIP-THRU: NBC TRUCK EQUIPMENT (31G)
  • SHIP-THRU: PALFLEET TRUCK EQUIPMENT (31T)
  • SHIP-THRU: READING EQUIPMENT & DISTRIBUTION (31B)
  • SHIP-THRU: ROUSH INDUSTRIES (31P)
  • SHIP-THRU: VENCHURS VEHICLE SYSTEM (31F)
  • BUILT: KENTUCKY TRUCK PLANT (D9E)
2016 Ford Super Duty F-250 SRW Consumer Information
  • Basic Years – 3
  • Basic Miles/km – 36,000
  • Drivetrain Years – 5
  • Drivetrain Miles/km – 60,000
  • Corrosion Years – 5
  • Corrosion Miles/km – Unlimited
  • Roadside Assistance Years – 5
  • Roadside Assistance Miles/km – 60,000
  • Overall Rating – * * * *
  • Overall Frontal Barrier Crash Rating – * * *
  • Frontal Barrier Crash Rating Driver – * * * (Male)
  • Frontal Barrier Crash Rating Passenger – * * * (Female)
  • Overall Side Crash Rating – * * * * *
  • Side Barrier Rating – * * * * *
  • Side Barrier Rating Driver – * * * * * (Male)
  • Side Pole Rating Driver Front Seat – * * * (Female)
  • Male/Female Dummy Note – Male: Average sized adult male dummy in 35-MPH crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs. Female: Small-sized adult female dummy in 35-mph crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs.
  • Combined Side Rating Front Seat – * * * * *
  • Rollover Rating – * * *
  • Rollover Rating Dynamic Test Result – No Tip
  • Risk of Rollover – 23.7%
  • Rollover Note – Dynamic (moving) test results (Tip or No Tip) and measured rollover-related properties determine vehicle’s risk of rollover in single vehicle crash and its rollover rating. The Rollover Resistance Rating utilizes a “fishhook” maneuver which is a series of abrupt turns at varying speeds to see how “top-heavy” a vehicle is.
2016 Ford Super Duty F-250 SRW Technical Specifications
  • Vehicle Name – Ford Super Duty F-250 SRW
  • Body Style – SD Regular Cab
  • Body Code – T
  • Drivetrain – Four Wheel Drive
  • Trans Order Code – 44W (99T&44W), 44P
  • Trans Type – 6
  • Trans Description Cont. – Automatic w/OD
  • Trans Description Cont. Again –
  • First Gear Ratio (:1) – 3.97
  • Second Gear Ratio (:1) – 2.32
  • Third Gear Ratio (:1) – 1.52
  • Fourth Gear Ratio (:1) – 1.15
  • Fifth Gear Ratio (:1) – 0.86
  • Sixth Gear Ratio (:1) – 0.67
  • Reverse Ratio (:1) – 3.13
  • Trans Power Take Off – Yes (62R)
  • Trans PTO Access – No, Yes (62R)
  • Transfer Case Model – Electronic (213), Manual
  • Transfer Case Power Take Off – No, Yes (62R)
  • Passenger Capacity – 3
  • Front Head Room – 40.7 in
  • Front Leg Room – 41.1 in
  • Front Shoulder Room – 68 in
  • Front Hip Room – 67.6 in
  • Second Head Room –
  • Second Leg Room –
  • Second Shoulder Room –
  • Second Hip Room –
  • Gross Axle Wt Rating – Front – 4800 lbs (996&(68D&(67H,((471-F,471-R),(63R-R,63R-F))))), 5600 lbs ((99T&(68D&67H)),((99T&(68D&(471-F,471-R))),(99T&(68D&(63R-R,63R-F))))), 4800 lbs ((996&67H),((996&(471-F,471-R)),(996&(63R-R,63R-F)))), 5600 lbs ((99T&67H),((99T&(471-F,471-R)),(99T&(63R-R,63R-F)))), 5600 lbs (473&996&68D), 6000 lbs (99T&473&68D), 5600 lbs (473&996), 6000 lbs (99T&473), 5200 lbs (99T&68D), 4400 lbs, 5200 lbs (99T&603A)
  • Gross Axle Wt Rating – Rear – 6100 lbs
  • Curb Weight – Front – 3717 lbs
  • Curb Weight – Rear – 2634 lbs
  • Gross Vehicle Weight Rating Cap – 9900 lbs (996&68D), 9900 lbs (99T&68D), 9900 lbs (68D), 10000 lbs, 9900 lbs (996&(68D&(67H,((471-F,471-R),(63R-R,63R-F))))), 9900 lbs ((99T&(68D&67H)),((99T&(68D&(471-F,471-R))),(99T&(68D&(63R-R,63R-F))))), 9900 lbs (473&996&68D), 9900 lbs (99T&473&68D)
  • Gross Combined Wt Rating – 22000 lbs (44P&X4M), 23500 lbs (44W), 19000 lbs
  • Dead Weight Hitch – Max Trailer Wt. – 5000 lbs
  • Dead Weight Hitch – Max Tongue Wt. – 500 lbs
  • Wt Distributing Hitch – Max Trailer Wt. – 12500 lbs
  • Wt Distributing Hitch – Max Tongue Wt. – 1250 lbs
  • Fifth Wheel Hitch – Max Trailer Wt. – 15500 lbs (44P&X4M), 16400 lbs (44W), 12500 lbs
  • Fifth Wheel Hitch – Max Tongue Wt. – 3875 lbs (44P&X4M), 4100 lbs (44W), 3125 lbs
  • Maximum Trailering Capacity – 12500 lbs
  • Engine Order Code – 99T (99T&44W), 996
  • Engine Type – Intercooled Turbo Diesel V-8 (99T&44W), Regular Unleaded V-8
  • Displacement – 6.7 L/406 (99T&44W), 6.2 L/379
  • Fuel System – Diesel Direct Injection (99T&44W), Sequential MPI
  • SAE Net Horsepower @ RPM – 440 @ 2800 (99T&44W), 385 @ 5500
  • SAE Net Torque @ RPM – 860 @ 1600 (99T&44W), 405 @ 4500
  • Engine Oil Cooler – None
  • Engine Displacement Units – 6.2 undefined, 6.7 undefined (99T), 6.2 undefined (996)
  • Engine Camshaft – OHV undefined (99T), SOHC undefined (996), SOHC undefined
  • Engine Block Type – iron undefined, iron undefined (99T), iron undefined (996)
  • Engine Cylinder Count – 8 undefined, 8 undefined (996), 8 undefined (99T)
  • Engine Valve Count – 2 undefined, 2 undefined (996), 4 undefined (99T)
  • Cold Cranking Amps @ 0° F (Primary) – 750 (99T), 650
  • Cold Cranking Amps @ 0° F (2nd) – 750 (99T), 650
  • Maximum Alternator Capacity (amps) – 357 (67A), 200 (67D), 157
  • Suspension Type – Front – Other
  • Suspension Type – Rear – Leaf
  • Spring Capacity – Front – 4800 lbs (996&(68D&(67H,((471-F,471-R),(63R-R,63R-F))))), 5600 lbs ((99T&(68D&67H)),((99T&(68D&(471-F,471-R))),(99T&(68D&(63R-R,63R-F))))), 4800 lbs ((996&67H),((996&(471-F,471-R)),(996&(63R-R,63R-F)))), 5600 lbs ((99T&67H),((99T&(471-F,471-R)),(99T&(63R-R,63R-F)))), 5600 lbs (473&996&68D), 6000 lbs (99T&473&68D), 5600 lbs (473&996), 6000 lbs (99T&473), 5200 lbs (99T&68D), 4400 lbs, 5200 lbs (99T&603A)
  • Spring Capacity – Rear – 6100 lbs
  • Axle Type – Front – Non-Independent
  • Axle Type – Rear – Rigid Axle
  • Axle Capacity – Front – 6000 lbs
  • Axle Capacity – Rear – 6200 lbs
  • Axle Ratio (:1) – Front – 3.31 (X31), 3.31 (X3H), 4.30 (X4M), 3.73, 3.55 (X35), 3.55 (X3J)
  • Axle Ratio (:1) – Rear – 3.31 (X31), 3.31 (X3H), 4.30 (X4M), 3.73, 3.55 (X35), 3.55 (X3J)
  • Front Tire Order Code – TCD (TCD), TBK (TBK), TCH, TDX (TDX), TDU (TDU)
  • Rear Tire Order Code – TCD (TCD), TBK (TBK), TCH, TDX (TDX), TDU (TDU)
  • Spare Tire Order Code – 512 (512-R,512-F)
  • Front Tire Size – LT265/70SR17 (TCD), LT245/75SR17 (TBK), LT275/65SR18, LT275/70SR18 (TDX), LT275/70SR18 (TDU)
  • Rear Tire Size – LT265/70SR17 (TCD), LT245/75SR17 (TBK), LT275/65SR18, LT275/70SR18 (TDX), LT275/70SR18 (TDU)
  • Spare Tire Size – Full-Size
  • Front Tire Capacity – 6390 lbs, 6830 lbs (TCH), 7050 lbs (648), 7280 lbs (TDX), 7280 lbs (TDU)
  • Rear Tire Capacity – 6390 lbs, 6830 lbs (TCH), 7050 lbs (648), 7280 lbs (TDX), 7280 lbs (TDU)
  • Revolutions/Mile @ 45 mph – Front – 660 Rev/Mile (TBK), 660 Rev/Mile (TCD), 652 Rev/Mile, 629 Rev/Mile (TDX), 629 Rev/Mile (TDU)
  • Revolutions/Mile @ 45 mph – Rear – 660 Rev/Mile (TBK), 660 Rev/Mile (TCD), 652 Rev/Mile, 629 Rev/Mile (TDX), 629 Rev/Mile (TDU)
  • Front Wheel Size – 17 X 7.5 in (64W), 18 X 8 in
  • Rear Wheel Size – 17 X 7.5 in (64W), 18 X 8 in
  • Spare Wheel Size – Full-Size in
  • Front Wheel Material – Aluminum
  • Rear Wheel Material – Aluminum
  • Spare Wheel Material – Steel
  • Steering Type – Re-Circulating Ball
  • Turning Diameter – Curb to Curb – 46.1 ft
  • Brake Type – 4-Wheel Disc
  • Brake ABS System – 4-Wheel
  • Brake ABS System (Second Line) – 4-Wheel
  • Disc – Front (Yes or ) – Yes
  • Disc – Rear (Yes or ) – Yes
  • Front Brake Rotor Diam x Thickness – 14.3 in
  • Rear Brake Rotor Diam x Thickness – 14.3 in
  • Drum – Rear (Yes or ) –
  • Rear Drum Diam x Width –
  • Fuel Tank Capacity, Approx – 26 gal (99T), 35 gal
  • Wheelbase – 137 in
  • Length, Overall – 227.6 in
  • Width, Max w/o mirrors – 79.9 in
  • Height, Overall – 79.2 in
  • Overhang, Front – 38.1 in
  • Overhang, Rear w/o bumper – 47.6 in (66D-R,66D-F)
  • Cab to Axle – 56.3 in
  • Ground to Top of Load Floor – 36.3 in
  • Ground Clearance, Front – 8.2 in
  • Ground Clearance, Rear – 8.2 in
  • Cargo Box Length @ Floor – 98 in
  • Cargo Box Width @ Top, Rear – 69.3 in
  • Cargo Box Width @ Floor – 69.3 in
  • Cargo Box Width @ Wheelhousings – 50.9 in
  • Cargo Box (Area) Height – 20 in
  • Tailgate Width – 0 in (66D-R,66D-F), 60.6 in
  • Cargo Volume – 77.3 ft³
  • Model Group –
  • Vehicle Segment –
  • Vehicle Type – Regular Cab undefined
  • Body Cab Style – Standard Cab undefined
  • Bed Style –
